Preliminary Work

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

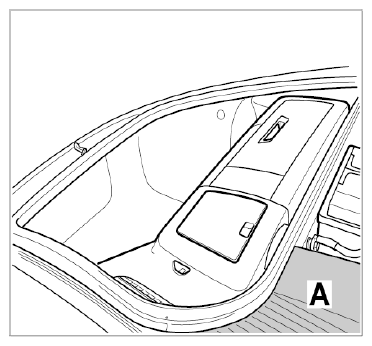

Remove left cover -A- → 852219 REMOVING AND INSTALLING COVER . Remove the right cover for RHD vehicles.

Fig 1: Identifying Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

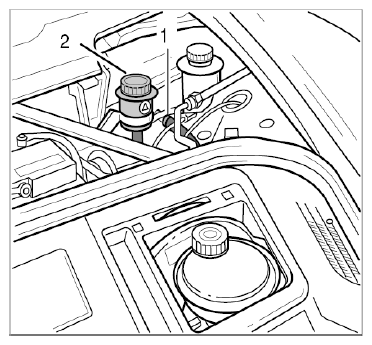

Detach hose from supply tank (Pentosin reservoir) at the return line -1- and seal using a suitable plug. Release the supply tank (Pentosin reservoir) -2- out of the holder and remove together with the hose (in RHD vehicles it is located under the right cover).

Fig 2: Identifying Reservoir
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove driver's seat (to facilitate assembly when removing and installing the clutch master cylinder).
