WM 302019 Removing And Installing Clutch Master Cylinder (Turbo Coupe, Turbo S Coupe, Turbo CABRIO, Turbo S CABRIO): Information

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

The clutch master cylinder is removed and installed from the driver's footwell.

The graphics (from Removing and installing clutch master cylinder) are for an LHD vehicle.

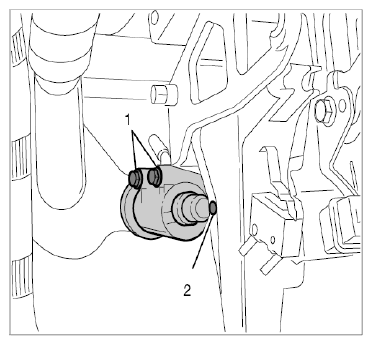

Fig 1: Identifying Clutch Master Cylinder Mounting Components

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

The -lines at the clutch master cylinder- are located under the left cover -A- on LHD vehicles. On RHD vehicles they are located under the right cover.

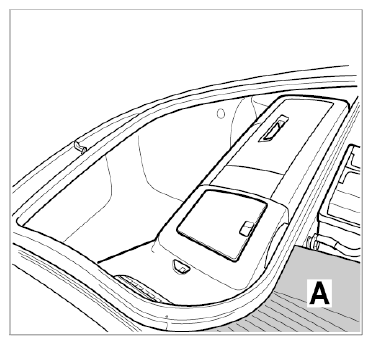

Fig 2: Identifying Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
