Subsequent Work

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Screw in the fastening screws -1-  and swivel the trim panel under the dashboard on the driver's side -2-  upwards -arrow A-  → 701919 REMOVING AND INSTALLING TRIM UNDER INSTRUMENT PANEL .

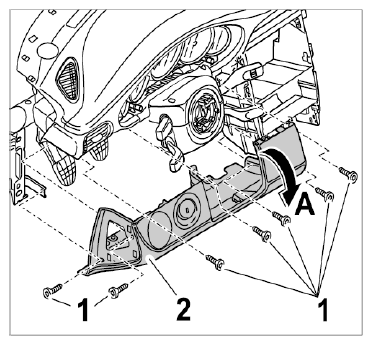

    Fig 1: Installing Trim Panel (Lower Part Of Dashboard)
    G09822292Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Install covers for center console → 681419 REMOVING AND INSTALLING CENTRE CONSOLE COVER .
