Preliminary Work

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

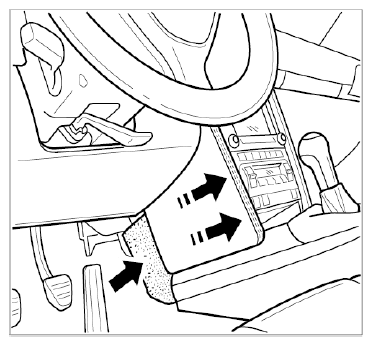

Removing trim panel (lower part of dashboard). To do this, remove the center console covers → Side trim panels, left footwell (center console) → 681419 REMOVING AND INSTALLING CENTRE CONSOLE COVER .

Fig 1: Removing Side Trim Panels (Left Footwell Centre Console)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

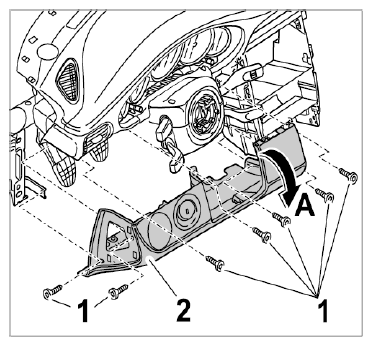

Unscrew the fastening screws -1- and swivel the trim panel under the dashboard on the driver's side -2- downwards -arrow A- → 701919 REMOVING AND INSTALLING TRIM UNDER INSTRUMENT PANEL .

Fig 2: Removing Trim Panel (Lower Part Of Dashboard)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
