WM 300107 Bleeding Clutch Control System (Turbo Coupe, Turbo S Coupe, Turbo CABRIO, Turbo S CABRIO): Information
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
The actuating hydraulic system is bled by pumping the pedal.
If a bleeding device filled with Pentosin is available, you can bleed the clutch in the same way as for previous systems.
The clutch high-pressure hydraulic system does not need to be bled separately. Actuating the clutch pedal approx. 10 times while the engine is running will suffice.

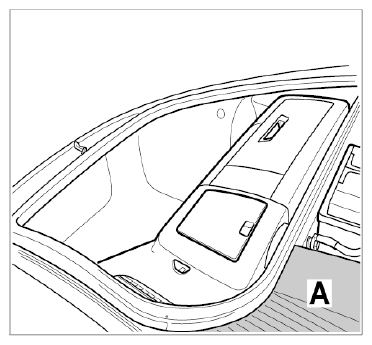

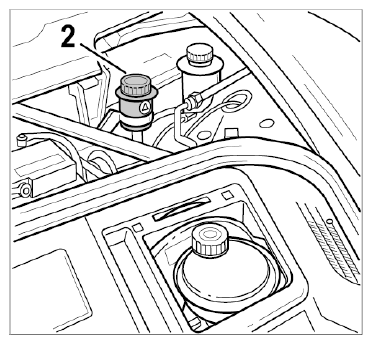

The supply tank (Pentosin reservoir) -2- for the actuating hydraulic system on left-hand drive vehicles is located under the left cover -A- . On right-hand drive vehicles the supply tank is located under the right cover.
