WM 300101 Clutch: Checking Fluid Levels (Turbo Coupe, Turbo S Coupe, Turbo CABRIO, Turbo S CABRIO): Information

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Incorrect fluids used

Risk of system failure

→ Only fill reservoir with the specified fluid.

→ Be careful when filling in fluids.

NOTE: Incorrect fluids used

Risk of system failure

→ Only fill reservoir with the specified fluid.

→ Be careful when filling in fluids.

Pentosin CHF can be ordered under the following part number:

Delivery quantity: 6 liters = 000.043.203.33. Container volume: 1 liter cans (6 ea.).

Power steering and clutch control system are supported by hydraulic auxiliary forces. A tandem servo pump is available instead of the servo pump for the steering (997 naturally aspirated engine) for this purpose. Both systems share one supply tank (reservoir). This -Pentosin reservoir- is located in the engine compartment.

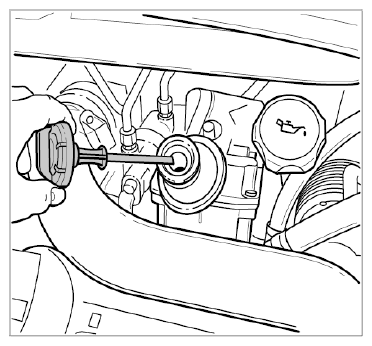

Fig 1: Removing Pentosin Reservoir In Engine Compartment

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

A second supply tank (Pentosin reservoir) -2- for the clutch actuating hydraulic system can also be found in the luggage compartment area. This second reservoir -2- is located under the left cover -A- . On right-hand drive vehicles it is located under the right cover.

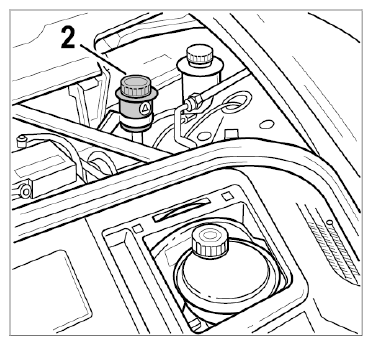

Fig 2: Removing Front Pentosin Reservoir (Luggage Compartment)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

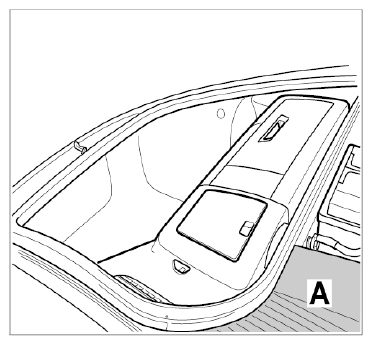

Fig 3: Identifying Cover Over Front Pentosin Reservoir

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
