Checking Pentosin Hydraulic Fluid In Luggage Compartment Area

Information

• The fluid level on the transparent supply tank should always lie between the Min. and Max. marking.
• If the reservoir has overflowed, the clutch slave cylinder is defective and must be replaced.
• Hold the supply tank with your hand (counter) while you loosen and tighten the cap.
• Pentosin CHF hydraulic fluid should not be topped up until the fluid level is at the lower marking.

The reservoir -2-  supplies the clutch actuating hydraulic system with Pentosin.

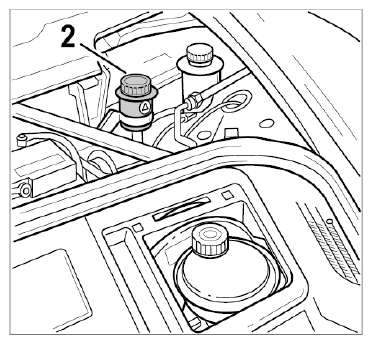

Fig 1: Removing Pentosin Reservoir For Clutch Control System

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Remove left cover -A-  (over Pentosin reservoir). On right-hand drive vehicles the Pentosin reservoir is located under the right cover.

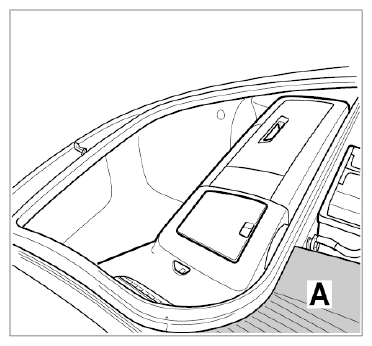

   Fig 2: Identifying Cover Over Front Pentosin Reservoir

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Important information

   1. Brake fluid reservoir/black cap with yellow marking.
   2. Pentosin reservoir for clutch control system/green cap with white border.
   3. Washer-fluid reservoir/blue cap.

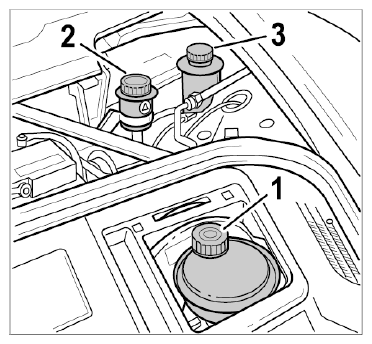

   Fig 3: Identifying Front Reservoir Compartments (Luggage Compartment)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. If the fluid level on the transparent supply tank -2-  does not lie between the Min. and Max. marking, screw off the cap. Counter at the reservoir while doing this. Top up as far as the Max. marking with Pentosin CHF hydraulic fluid.

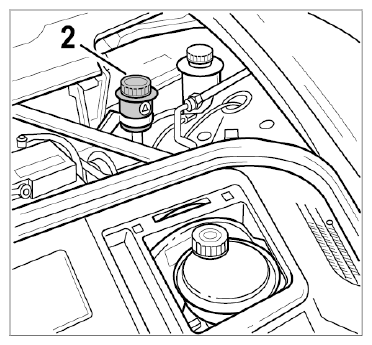

   Fig 4: Identifying Transparent Supply Tank Cap

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Screw on cap (green) -2-  . Counter at the reservoir while doing this.
4. Fit cover over Pentosin reservoir.
