4. Checking Pressure Retaining Valve In Pressure Control Valve

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

This pressure retaining valve (in the pressure control valve -2- ) can only be checked indirectly.

A fault exists if the clutch boost function does not last for an entire 24 hours, but the pressure retaining valve in the clutch slave cylinder (Test 3) and the pressure control valve -2- (Test 2) are functioning correctly.

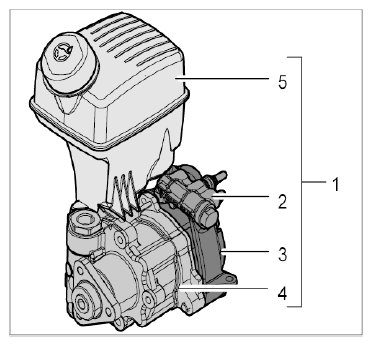

Fig 1: Identifying Hydraulic Pump Components (Model Year 2010)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

If the pressure retaining valve in the clutch slave cylinder is functioning correctly (Test 3), replace the hydraulic pump -1- (tandem pump/pressure control valve assembly -2- ).

→ 489819 REMOVING AND INSTALLING HYDRAULIC PUMP - PDK AND MANUAL TRANSMISSION
