1. Clutch: Checking Fluid Levels

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Check the fluid level in the engine compartment and luggage compartment area -2-  . → 300101 CLUTCH: CHECKING FLUID LEVELS

If the front Pentosin reservoir (in luggage compartment area) -2-  has overflowed, the clutch slave cylinder is defective and must be replaced.

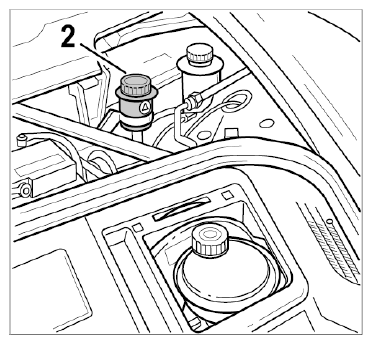

Fig 1: Identifying Front Pentosin Reservoir (Luggage Compartment)
G09822244Courtesy of PORSCHE CARS NORTH AMERICA, INC.
