Disassembling Frame For Roll-Over Protection System

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

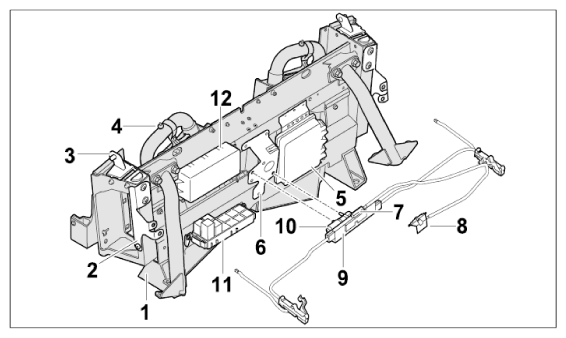

Fig 1: Frame For Roll-Over Protection System Diagram
G09827500Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Frame for roll-over protection system
  2. Securing bracket for convertible-top compartment trim
  3. Adapter for rear cover linkage
  4. Roll-over bar module
  5. DME control unit
  6. Holder for convertible-top compartment lid drive mechanism
  7. Microswitch for convertible-top compartment lid drive mechanism
  8. Cable for convertible-top compartment lid locking hook
  9. Convertible-top compartment lid drive gear
  10. Motor for convertible-top compartment lid drive mechanism
  11. Relay carriers
  12. Convertible top control unit
  1. Remove adapter for rear cover linkage.

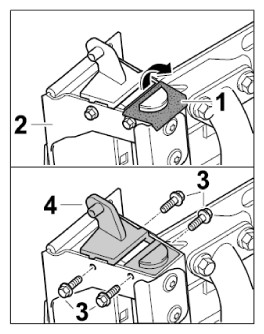

    Fig 2: Removing Adapter
    G09827501Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 1.1. Pull form felt -1-  out of the trim surround -2-  (-arrow-  ) and dispose of it.
    2. 1.2. Unscrew fastening screws -3-  and pull the adapter -4-  up and off.
  2. Remove the holder stop for convertible top compartment.

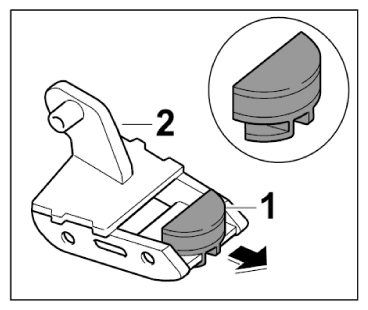

    Fig 3: Removing Holder Stop
    G09827502Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 2.1. Pull the holder stop -1-  out of the adapter -2-  (-arrow-  ).

      The holder stop can be removed when both the adapter and the roll-over bar cover are installed.

  3. Remove the fastening angle for convertible-top compartment trim.

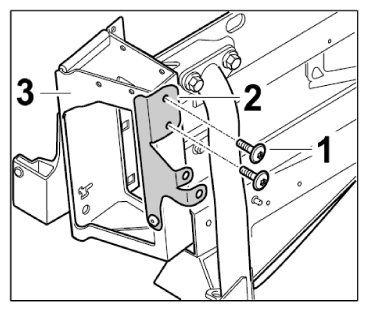

    Fig 4: Removing Fastening Angle
    G09827503Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 3.1. Unscrew fastening screws -1-  and remove the bracket -2-  from the trim -3-  .
  4. Remove holder for control unit.

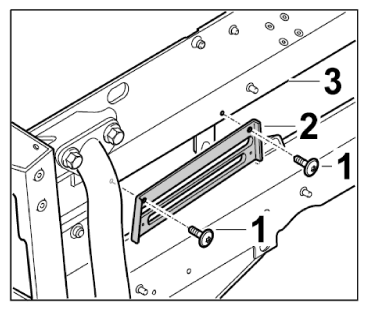

    Fig 5: Removing Holder For Control Unit
    G09827504Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 4.1. Unscrew fastening screws -1-  and remove the holder -2-  from the trim -3-  .
  5. Remove holder for top box cover drive.

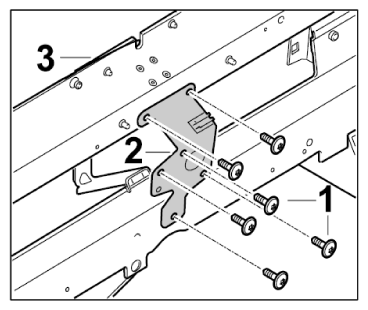

    Fig 6: Removing Holder For Top Box Cover Drive
    G09827505Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 5.1. Unscrew fastening screws -1-  and remove the holder -2-  from the trim -3-  .
