Assembling Frame For Roll-Over Protection System

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Install holder for convertible-top compartment lid drive.

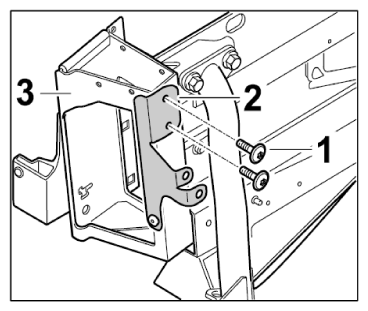

Fig 1: Installing Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Position holder -2- on frame -3- and secure with the fastening screws -1- . → Tightening torque: 5 Nm
Install holder for control unit.

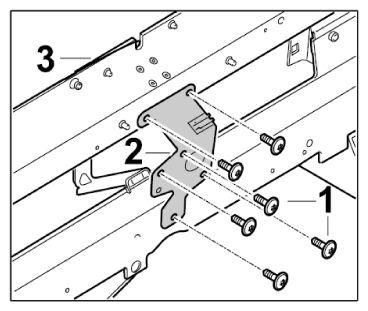

Fig 2: Removing Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Position holder -2- on frame -3- and secure with the fastening screws -1- . → Tightening torque: 5 Nm
Install the fastening angle for convertible-top compartment trim.

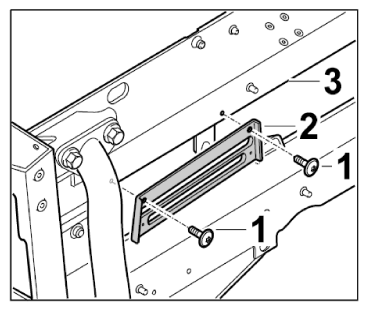

Fig 3: Installing Fastening Angle For Convertible-Top Compartment Trim
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 3.1. Position fastening angle -2- on frame -3- and secure with the fastening screws -1- . → Tightening torque: 10 Nm
Install the holder stop for convertible top compartment.

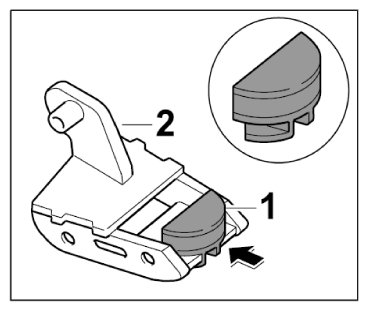

Fig 4: Installing Holder Stop
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 4.1. Press the holder stop -1- into the adapter -2- (-arrow- ).
Install adapter for rear cover linkage.

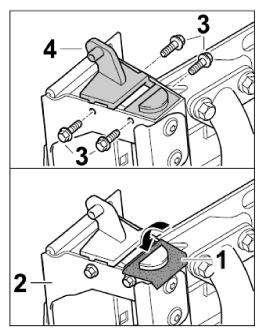

Fig 5: Installing Adapter
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 5.1. Position adapter -4- on frame -2- and secure with the fastening screws -3- . → Torque: 10 Nm
2. 5.2. Clean bonding surface with isopropanol before applying the felt -1- .
3. 5.3. Remove protective film and stick felt down -1- (-arrow- ).
Stick on felt tape.

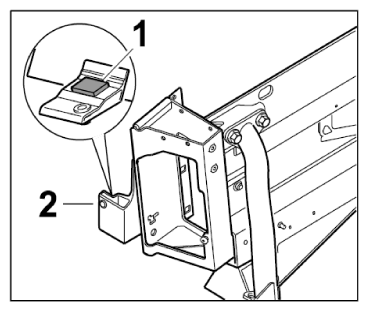

Fig 6: Identifying Felt Tape
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 6.1. Clean bonding surface with isopropanol before applying the felt -1- .
2. 6.2. Pull off protective film stick down felt -1- centrally onto the frame surface -2- .
