Installing Frame For Roll-Over Protection System: Notes

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

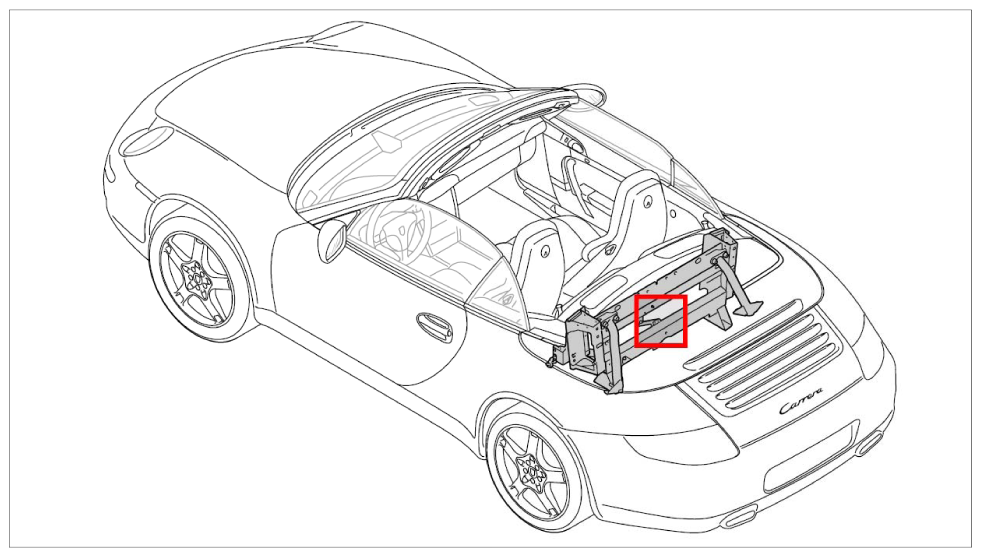

Fig 1: Identifying Frame For Roll-Over Protection System Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

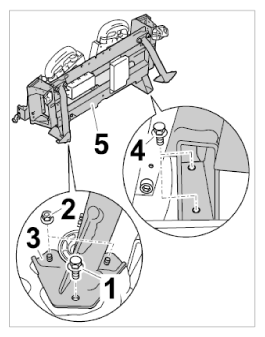

Carefully position frame for roll-over protection system -5- on the vehicle. Screw in fastening screws -1, 4- and fastening nuts partially by hand.

Fig 2: Removing Frame For Roll-Over Protection System
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

To reduce adjustment work to a minimum when assembling convertible-top components, the frame for the roll-over protection system must be positioned according to the dimension shown.

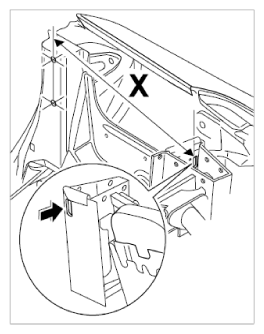

Move frame for roll-over protection system -5- to adjust it by dimension -X- → Adjustment value: 491 mm+/-1 mm .

Fig 3: Adjusting Frame For Roll-Over Protection System
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in fastening screw -1- and fastening nuts -2- on rear Z support -3- . Tightening torque → Tightening torque: 45 Nm (33 ftlb.) → Tightening torque: 45 Nm (33 ftlb.)
Screw down fastening screw -4- on frame for roll-over protection system -5- . Tightening torque → Tightening torque: 45 Nm (33 ftlb

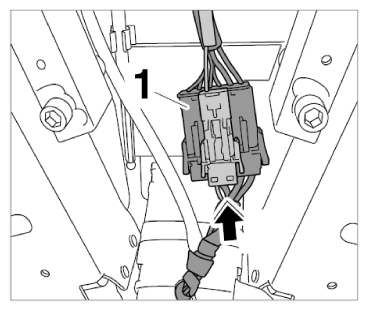

Press in plug connections -1- on wire harness for roll-over protection system.

Fig 4: Locking Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
