Diagram Of Frame For Roll-Over Protection System

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

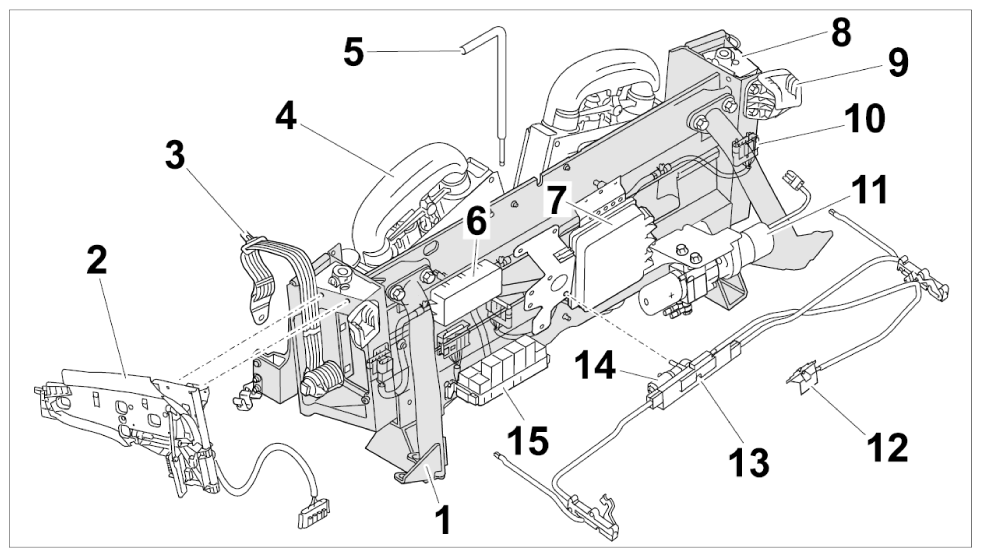

Fig 1: Frame For Roll-Over Protection System Diagram
G09827499Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Frame for roll-over protection system
  2. Rear side panel lid
  3. Rear three-point belt
  4. Roll-over bar module
  5. Angular screwdriver (tool kit)
  6. DME control unit
  7. Convertible-top control unit
  8. Mount for rear hardtop locking mechanism
  9. Convertible-top fixing device
  10. Wire harness for convertible top
  11. Hydraulic pump
  12. Locking mechanism for convertible-top compartment lid
  13. Drive mechanism for convertible-top compartment lid
  14. Motor for convertible-top compartment lid drive mechanism
