Assignment Of Roll-Over Bar And Frame For Roll-Over Protection System

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Roll-over bar (module) with cover plate up to 07.07.2006

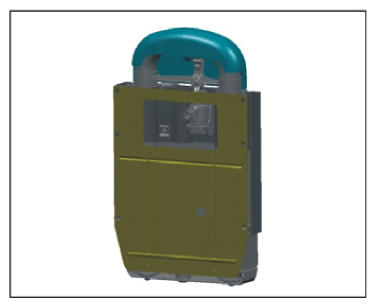

Fig 1: Identifying Roll-Over Bar (Module)
G09827476Courtesy of PORSCHE CARS NORTH AMERICA, INC.

No conversion necessary.

Fig 2: Identifying Frame Of Roll-Over Protection System (07.07.2006)
G09827477Courtesy of PORSCHE CARS NORTH AMERICA, INC.

The cover plate can be removed from the roll-over bar (module).

Fig 3: Identifying Frame Of Roll-Over Protection System (08.07.2006)
G09827478Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Roll-over bar (module) as of 08.07.2006  → Dates of introduction as of Vehicle Ident. Nos  .

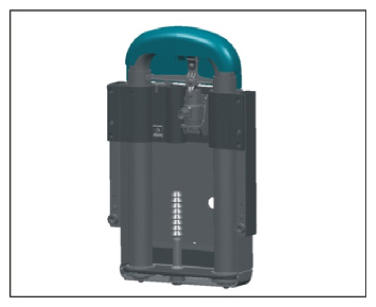

Fig 4: Identifying Roll-Over Bar (Module)
G09827479Courtesy of PORSCHE CARS NORTH AMERICA, INC.

The cover plate on the old roll-over bar (module) must be used on the new roll-over bar (module).

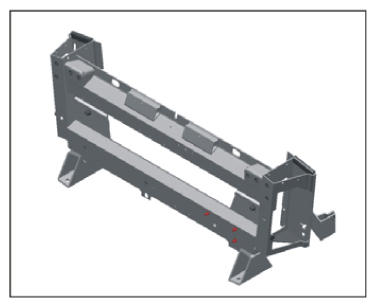

Fig 5: Identifying Frame Of Roll-Over Protection System (07.07.2006)
G09827480Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Can be installed together.

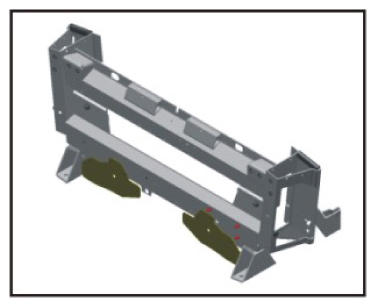

Fig 6: Identifying Frame Of Roll-Over Protection System (08.07.2006)
G09827481Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Dates of introduction as of Vehicle Ident. Nos.

Modified roll-over bar (module) and frame for roll-over protection system as of production date 08.07.2006

For details of specific Vehicle Ident. Nos., see table below.

As of Vehicle Ident. Nos.: Model
99 Z6S 77 5281 911 Carrera S/RoW
99 Z6S 77 5282 911 Carrera 4S/RoW
99 76S 76 9550 911 Carrera 4S/USA
99 66S75 7926 911 Carrera S/USA
99 86S 75 2047 911 Carrera/RoW
99 X6S 75 2048 911 Carrera 4/RoW
