Removing Roll-Over Bar Module

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

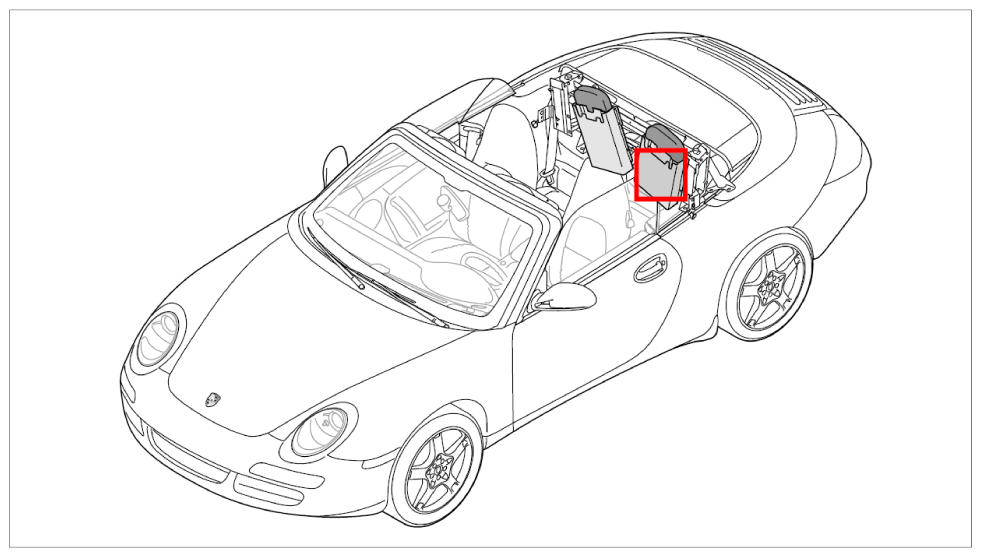

Fig 1: Identifying Roll-Over Bar Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Actuate the roll-over protection system only if:

the hardtop is removed
the convertible top is open
the caps are removed

Connect the PIWIS tester 9718 to the diagnostic socket. Switch on ignition. Select menu item "Roll-over protection", and select menu item "Drive links" in the command line which then appears. Press the key combination described in the tester; the roll-over protection system is triggered.

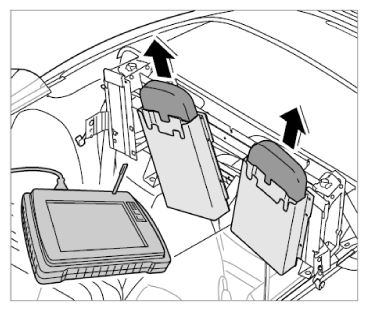

Fig 2: Triggering Roll-Over Protection System
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew fastening screws -1- from the roll-over bar module -2- .

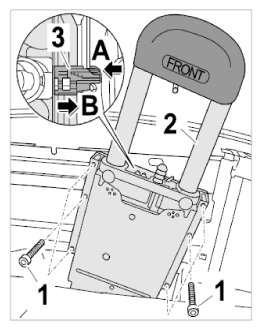

Fig 3: Removing Roll-Over Bar Module
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull roll-over bar module forwards slightly until the electric plug connection -3- is accessible.
Press in locking mechanism -Arrow A- and pull off electric plug connection -3- -Arrow B- .
Lift roll-over bar module -2- up and off.
