Mechanical Emergency Triggering Of The Roll-Over Protection System

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

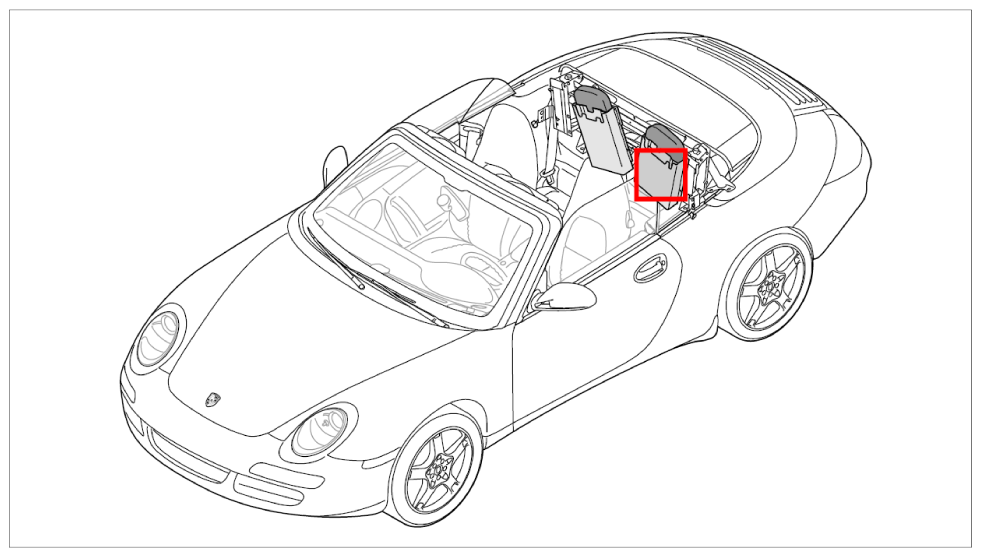

Fig 1: Identifying Roll-Over Bar Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

If the roll-over bar modules cannot be triggered via the diagnostic interface, mechanical emergency triggering is possible.

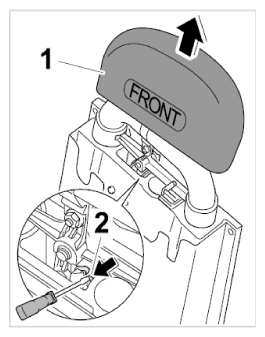

Fig 2: Removing Roll-Over Protection System

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclip cover by pulling upwards -1- .
WARNING:
Incorrect handling of roll-over protection system
- Roll-over protection system is activated
→ Remove ignition key.

→ Wait 1 minute before starting work.

→ Keep space clear for the roll-over protection system to move.

→ Only remove roll-over bar module when the roll-over bar is extended.
WARNING:
Incorrect handling of roll-over protection system
- Roll-over protection system is activated
→ Remove ignition key.

→ Wait 1 minute before starting work.

→ Keep space clear for the roll-over protection system to move.

→ Only remove roll-over bar module when the roll-over bar is extended.
WARNING:
Incorrect handling of roll-over protection system
- Roll-over protection system is activated
→ Remove ignition key.

→ Wait 1 minute before starting work.

→ Keep space clear for the roll-over protection system to move.

→ Only remove roll-over bar module when the roll-over bar is extended.
Press with a screwdriver against the upper edge of the pawl -2- . The roll-over protection system will be released.
