Checking Roll-Over Bar

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Actuate the roll-over protection system only if:

the hardtop is removed
the convertible top is open
the caps are removed

PIWIS Tester 9718 must be connected to the diagnostic socket. Switch on ignition. Select menu item "Airbarg/POSIP" , and select menu item "Drive links" in the command line which then appears, select "Triggering roll-over bar" in the command line that appears. Press the key combination [F2] and [F8] within 2 s, as described in the Tester; the roll-over protection system is triggered. Please note: time until triggered approx. 10s!

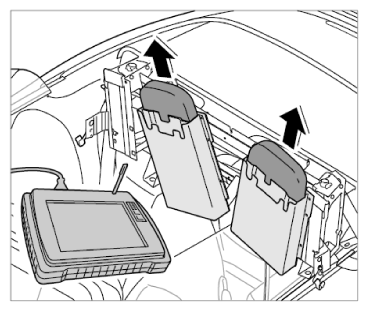

Fig 1: Triggering Roll-Over Protection System
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

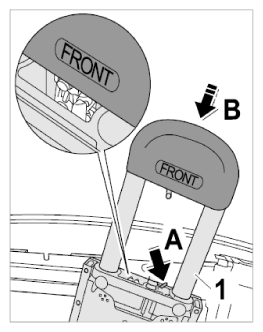

Press locking levers outward -arrow A- and press in the roll-over bar -1- (-arrow B- ) until it is felt to engage -inset- .

Fig 2: Pressing Roll-Over Bar
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
