Removing AWS Control Unit (Folding Sports Bucket Seat)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

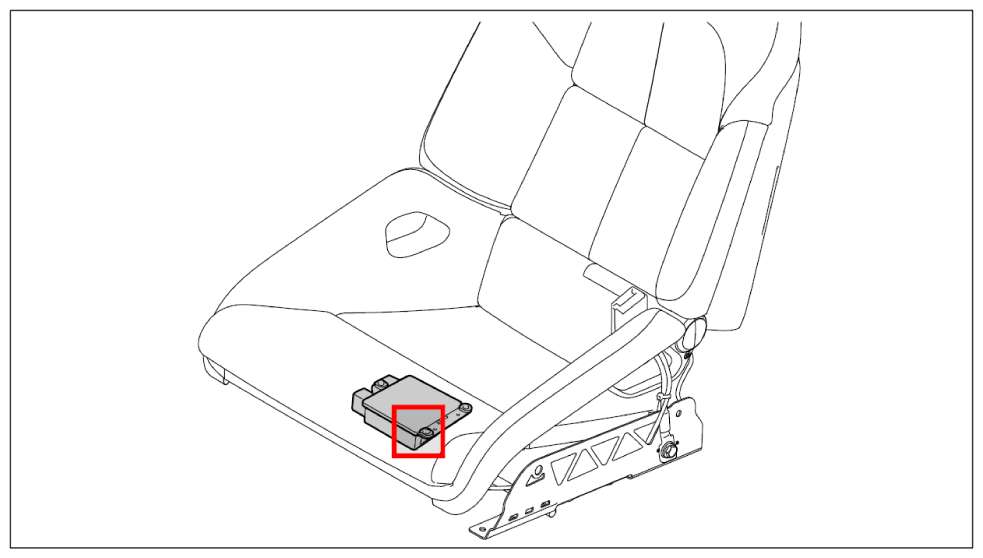

Fig 1: Identifying AWS Control Unit Installation Position (Folding Sports Bucket Seat)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pull off connectors on AWS control unit.
1. 1.1. Release both connectors -arrows A- .
2. 1.2. Pull off both connectors on the AWS control unit -arrows B- .

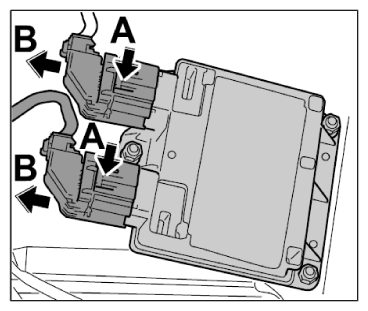

  Fig 2: Pulling Off Connectors On AWS Control Unit
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove AWS control unit.
1. 2.1. Screw off the three fastening nuts -1- . Counter the fastening screws -2- while doing this.
2. 2.2. Remove AWS control unit -arrow- .

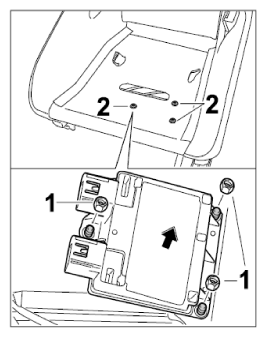

  Fig 3: Removing AWS Control Unit
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
