Installing AWS Control Unit (Folding Sports Bucket Seat)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Install AWS control unit.

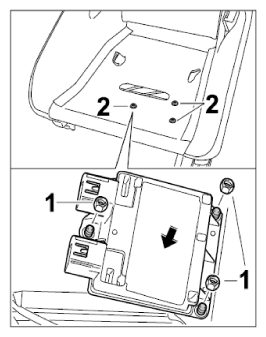

1. 1.1. Position AWS control unit on the seat shell -arrow- .
2. 1.2. Tighten the three fastening nuts -1- . Counter the fastening screws -2- while doing this. → Tightening torque: 3 Nm (2 ftlb.)

  Fig 1: Installing AWS Control Unit
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

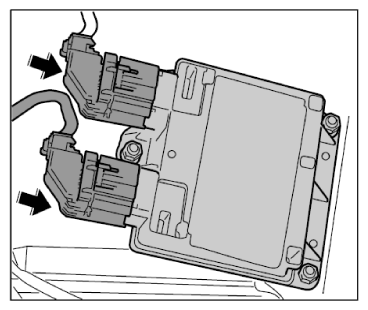

Connect the two connectors on the AWS control unit -arrows- until they engage securely.

Fig 2: Connecting Connectors On AWS Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
