Removing AWS Control Unit

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

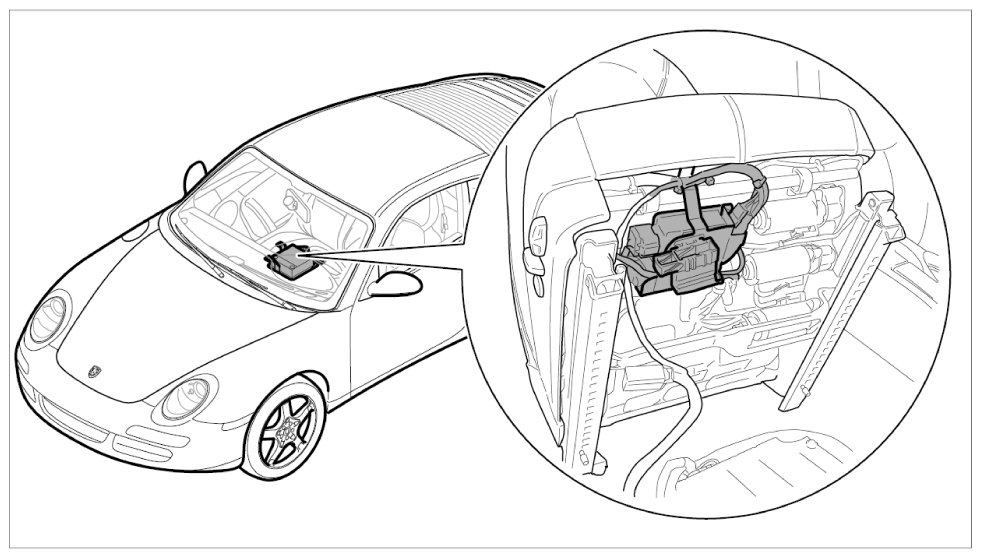

Fig 1: Identifying AWS Control Unit Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

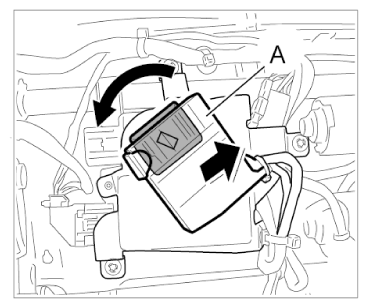

Turn seat central connector -A- at AWS holder to the left and remove from the holder.

Fig 2: Loosening Seat Central Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

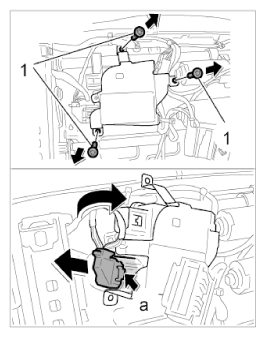

Unscrew the three fastening screws -1- for the AWS holder on the seat bracket.

Fig 3: Removing Fastening Screws From AWS Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release electric connector on AWS control unit -a- , unplug and tilt the AWS holder to the right side.

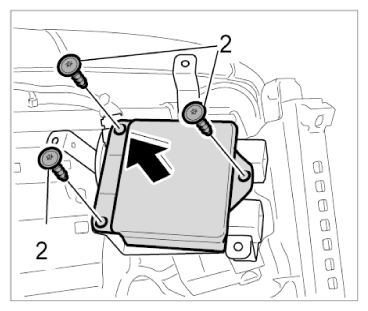

Unscrew the three fastening screws -2- of the AWS control unit and remove the control unit.

Fig 4: Removing Fastening Screws For AWS Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
