Installing Side Airbag (Folding Sports Bucket Seat)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Connect plug connections on the side airbag.
1. 1.1. Connect the line and secure it with the fastening nut -1- . → Tightening torque: 4 Nm (3 ftlb.)
2. 1.2. Plug in the connector -arrow A- until it engages securely.
3. 1.3. Insert the side airbag into the backrest frame -arrow B- and counter it.

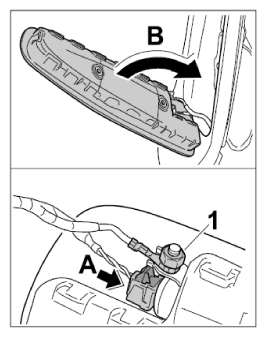

  Fig 1: Connecting Plug Connections On Side Airbag
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure the side airbag.
1. 2.1. Lift up the side of the seat that was loosened -arrows- .
2. 2.2. Secure the side airbag with the two fastening screws -1- . → Tightening torque: 7 Nm (5 ftlb.)

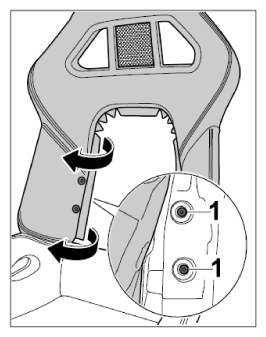

  Fig 2: Securing Side Airbag
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
