Removing Contact Unit For Airbag

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

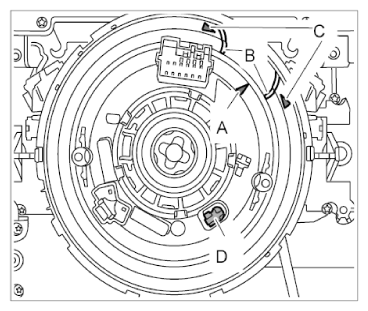

Ensure that arrow -A- of the rotor is positioned between the markings -B- of the arrows -C- of the airbag contact unit and that the locking element -D- is engaged.

Fig 1: Identifying Contact Unit Mark

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

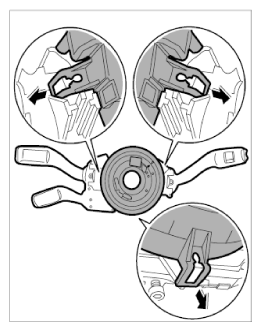

Carefully lift up the three retaining tabs and remove airbag contact unit.

Fig 2: Removing Airbag Contact Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
