Installing Contact Unit For Airbag

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position airbag contact unit and press onto the steering column switch until the three tabs engage.

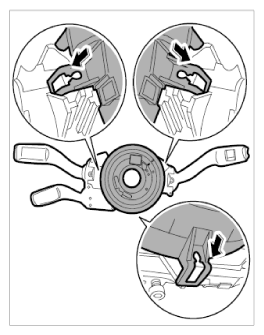

    Fig 1: Installing Airbag Contact Unit
    G09827412Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Calibrate steering angle sensor. → Calibrating Steering-Angle Sensor
