Removing Top Belt Strap Guide

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

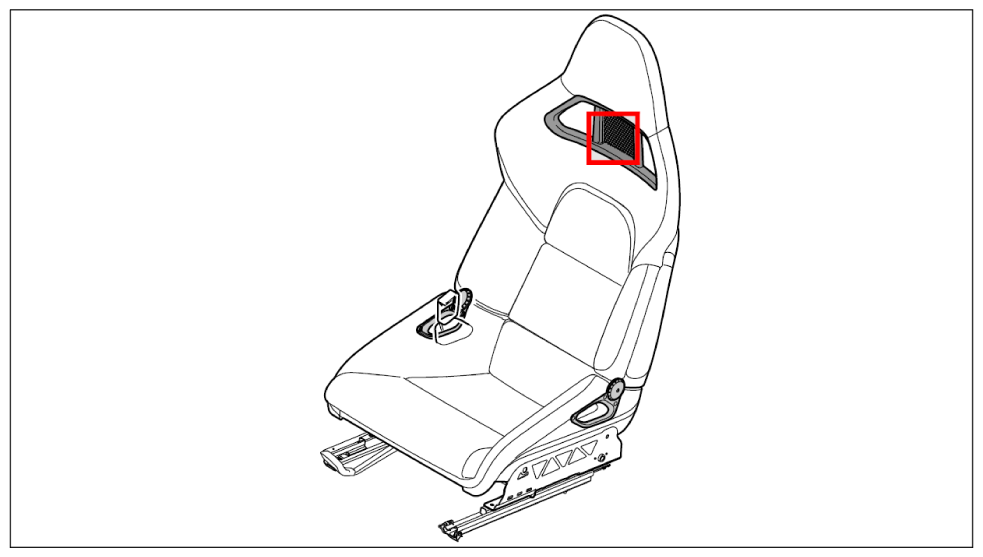

Fig 1: Identifying Belt Strap Guide Installation Position (Folding Sports Bucket Seat)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

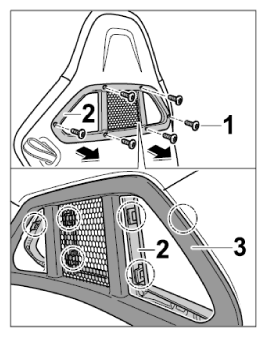

Unscrew fastening screws -1- .

Fig 2: Removing Outer Trim
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Carefully unclip outer trim -2- at the locking lugs on the inner trim -3- (-arrows- ).

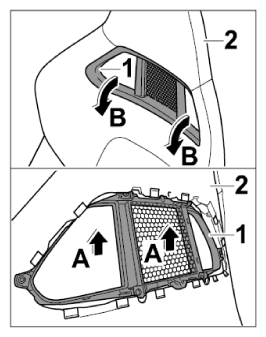

Lift inner trim -1- up slightly -arrows A- and pull it forward to remove it from the backrest shell -2- (-arrows B- ).

Fig 3: Removing Inner Trim
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
