Removing Bottom Belt Strap Guide

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

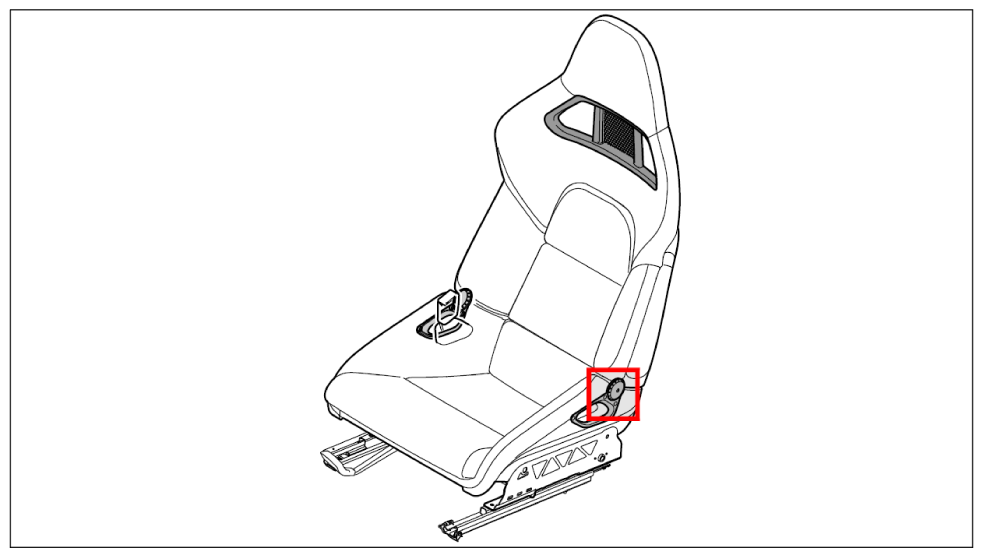

Fig 1: Identifying Belt Strap Guide Installation Position (Folding Sports Bucket Seat)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrew fastening screws -1- and remove bottom belt strap guide -2- from the seat shell -3- (-arrow- ).

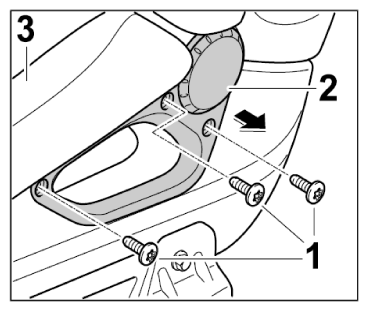

Fig 2: Removing Bottom Belt Strap Guide
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
