Installing Top Belt Strap Guide

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

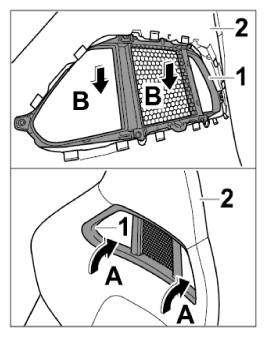

Position inner trim -1- on the backrest shell -2- (-arrows A- ) and align it -arrows B- .

Fig 1: Installing Inner Trim
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

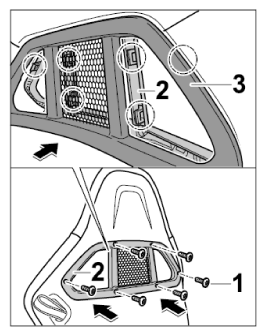

Position outer trim -2- on the inner trim -3- (-arrows- ) and press it in until the locking lugs engage securely.

Fig 2: Installing Outer Trim
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure outer trim -2- with the fastening screws -1- . → Tightening torque: 3 Nm (2 ftlb.)+/-0.5 Nm (+/-0.5 ftlb.)
