Removing Rear Belt Lock

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

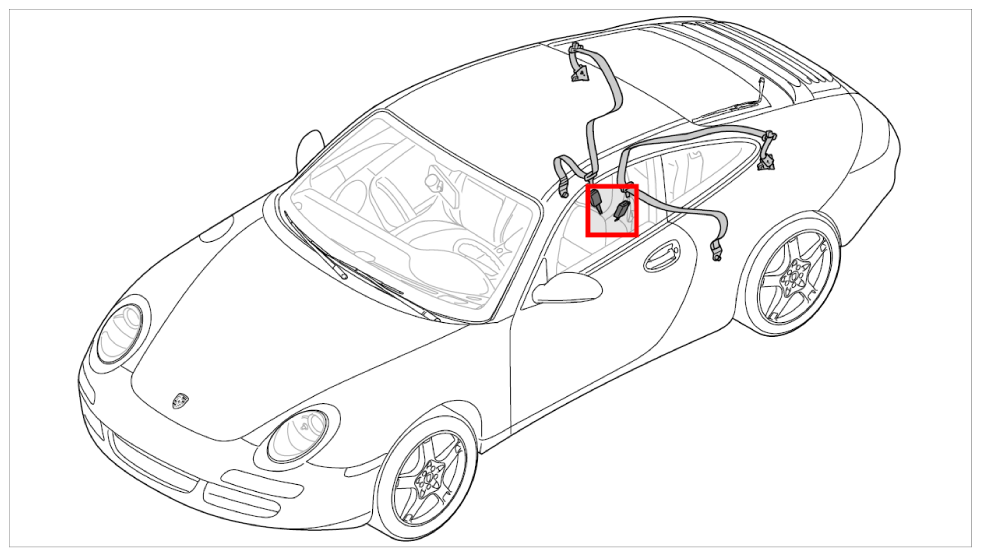

Fig 1: Identifying Rear Belt Lock Installation Position
G09827366Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Press out cover -1-  with a plastic spatula.

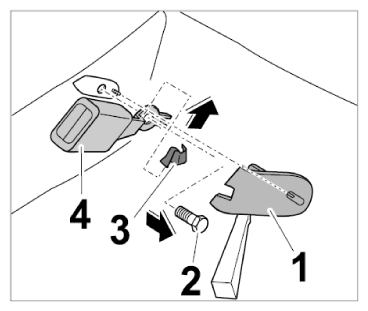

    Fig 2: Removing Rear Belt Lock
    G09827367Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unscrew fastening screw -2-  from the seat-belt buckle -4-  .
  3. Remove metal clip -3-  .
