Removing Front Belt Lock

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

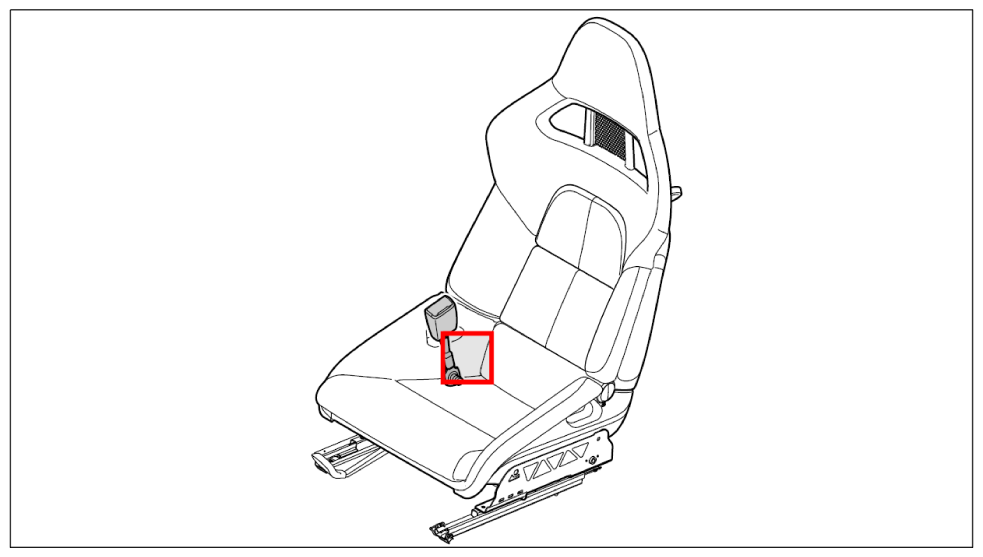

Fig 1: Identifying Front Belt Lock Installation Position (Folding Sports Bucket Seat)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

WARNING: Defective front belt lock.

Danger of material damage and injury.

→ Do not kink front belt lock.

→ Observe sequence for removing and installing front belt lock.

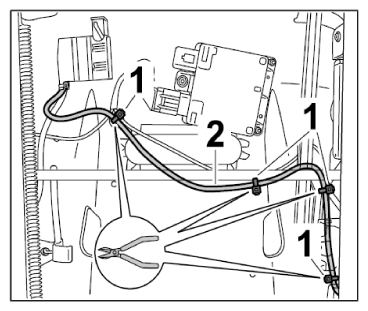

Remove tie-wraps -1- on wire harness for front belt lock -2- .

Fig 2: Loosening Wire Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

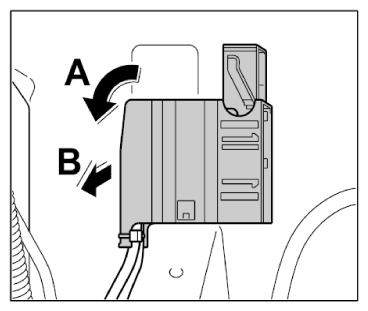

Turn connector socket 90° to the left -arrow A- and remove it from the seat shell -arrow B- .

Fig 3: Removing Connector Socket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disconnect wire harness from the connector socket.

Fig 4: Disconnecting Connector Socket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

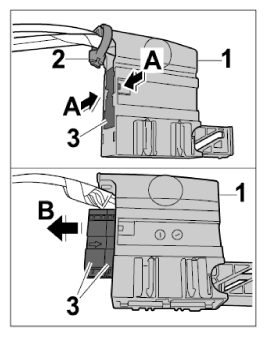

1. 3.1. Remove tie-wrap -2- on the connector socket -1- .
2. 3.2. Release single connectors -3- (-arrows A- ) and remove them from the connector socket -1- (-arrow B- ).
Remove front belt lock.

Fig 5: Removing Front Belt Lock
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

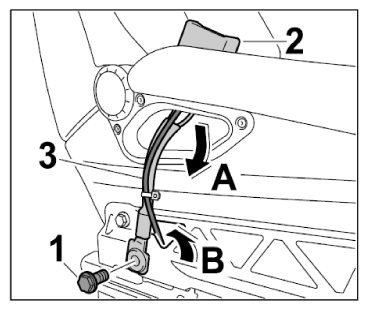

1. 4.1. Unscrew fastening screw -1- .
2. 4.2. Pull front belt lock -2- out through the opening on the seat shell -arrow A- .
3. 4.3. Pull wire harness -3- out through the seat frame -arrow B- .
