Installing Front Belt Lock

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Incorrect handling of safety bolts

Danger of injury
Loss of torque

→ Always use new fastening screws and nuts following removal.

→ Observe specified tightening torques.

→ Carry out a visual inspection of all re-used parts.

Information

Always replace the fastening screws on the seat-belt buckle after customer service and reworking. The micro-self-locking screws must not be treated, greased or loosened and then screwed on again.

Install front belt lock.

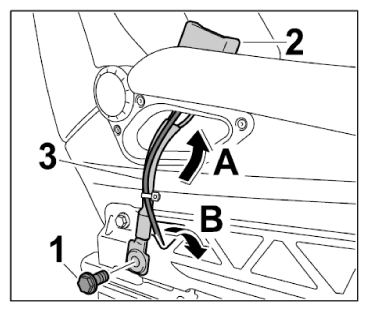

Fig 1: Installing Front Belt Lock
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Guide front belt lock -2- in through the opening on the seat shell -arrow A- .
2. 1.2. Secure front belt lock -2- with the fastening screw -1- . → Tightening torque: 35 Nm (26 ftlb.)+/-5 Nm (+/- 3.5 ftlb.)
3. 1.3. Pull wire harness -3- through the seat frame -arrow B- .
Join connector socket.
1. 2.1. Push the single connectors -3- into the connector socket -1- (-arrow- ) until the single connectors engage securely.
2. 2.2. Secure the wire harness with a new tie-wrap -2- on the connector socket -1- .

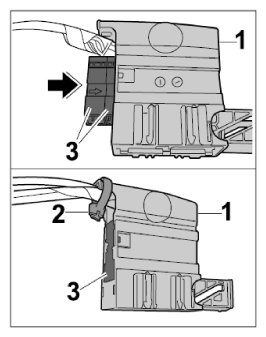

  Fig 2: Joining Connector Socket
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert the connector socket into the seat shell -arrow A- and turn it 90° to the right -arrow B- .

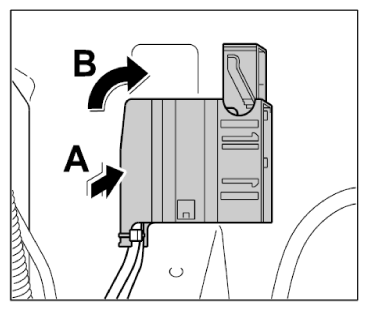

Fig 3: Securing Airbag Connector Socket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

When routing the wire harness for the front seat-belt buckle, ensure that it is routed without tension.
Secure wire harness for front belt lock -2- with new tie-wraps -1- .

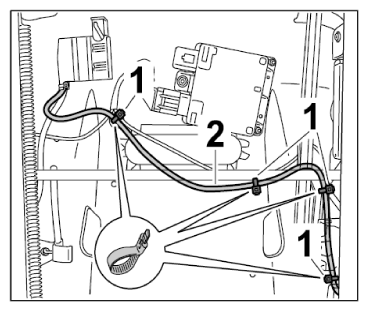

Fig 4: Securing Wire Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
