Removing Control Unit For Memory Seat Adjustment With Support

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Front Belt Lock Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrew the two fastening screws -1- and remove control unit for memory seat adjustment together with the support -2- from the seat frame.

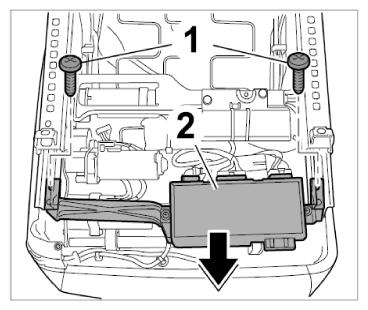

Fig 2: Removing Control Unit For Memory Seat
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unlock and pull off the three connectors on the control unit for memory seat adjustment -arrows a- .

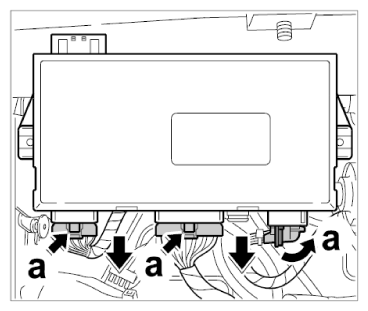

Fig 3: Pulling Off Connectors On Control Unit For Memory Seat
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
