Installing Front Belt Lock: Notes

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Loosen the safety-related threaded joint.

Danger of injury if belt lock is not screwed on correctly.

→ Always replace fastening screws for belt lock after customer service and reworking.

→ It is not permissible to make alterations to the microencapsulated screws (e.g. use lubricant, loosen bolts, and screw them down again).

Position belt lock -4- and secure using the fastening screw -3- . → Tightening torque: 50 Nm (37 ftlb.)

Fig 1: Installing Front Belt Lock
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- The electric lead must not be routed too tightly around the seat cushion.
Lay wire harness -1- and press into the metal clip -2- (-arrow A- ).
Press the three individual connectors -3- into the connector socket -1- until they engage firmly.

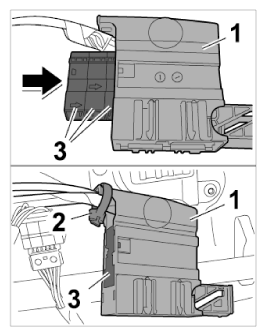

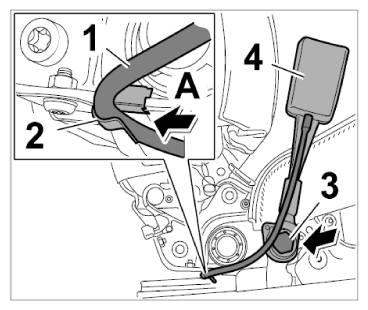

Fig 2: Installing Connector Socket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure new tie-wraps -2- on connector socket -1- .
Attach connector socket to support until it clicks into place.

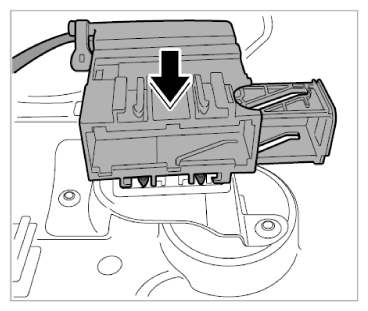

Fig 3: Attaching Connector Socket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Place wire harness -2- into the two line holders -3- and secure with three new tie-wraps -1- .

Fig 4: Securing Wiring Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position support -2- with connected motor and air cushion control valve and screw down with the two fastening screws -1- .

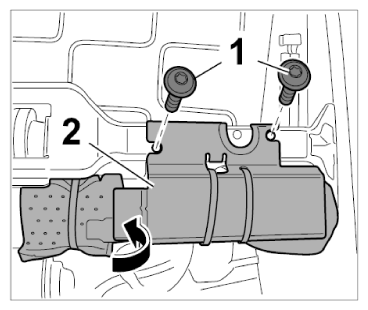

Fig 5: Securing Support With Compressor And Air Distributor Valve
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
