Installing Control Unit For Memory Seat Adjustment With Support

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Attach the three connectors on the control unit for memory seat adjustment until they are felt to engage.

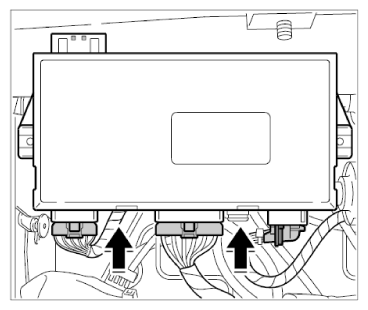

    Fig 1: Attaching Connectors On Control Unit
    G09827364Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Position control unit for memory seat adjustment with support -2-  on seat frame and secure with both fastening screws -1-  .

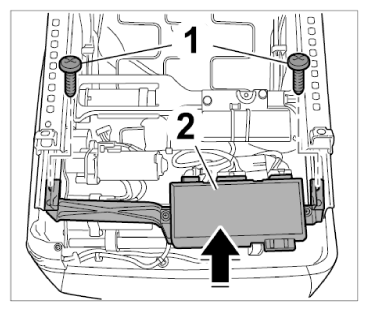

    Fig 2: Installing Control Unit For Memory Seat
    G09827365Courtesy of PORSCHE CARS NORTH AMERICA, INC.
