Removing Front Belt Lock (Bucket Seat)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

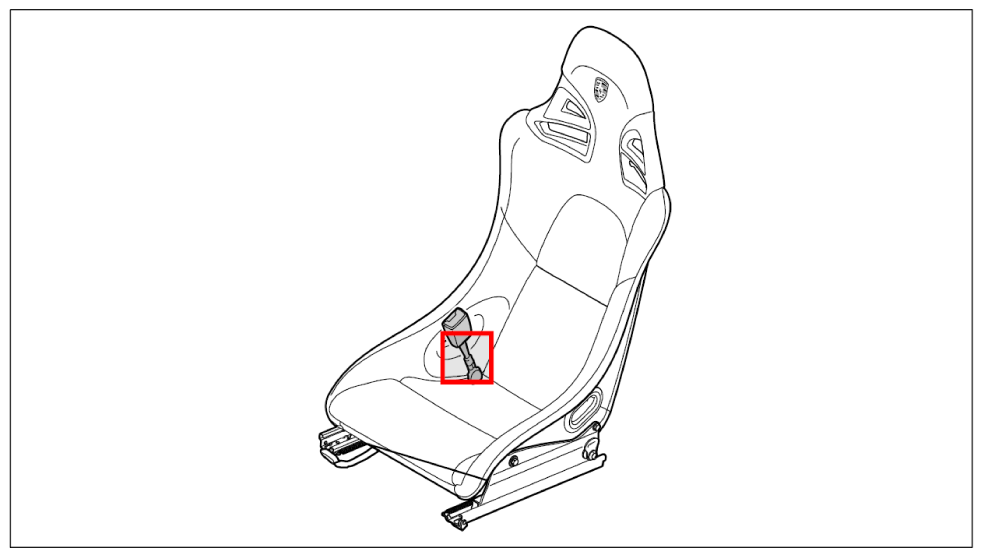

Fig 1: Identifying Front Belt Lock Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

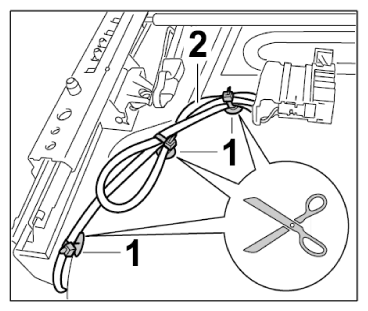

Cut tie-wraps -1- on wire harness for front belt lock -2- .

Fig 2: Removing Tie-Wraps On Wire Harness For Front Belt Lock
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

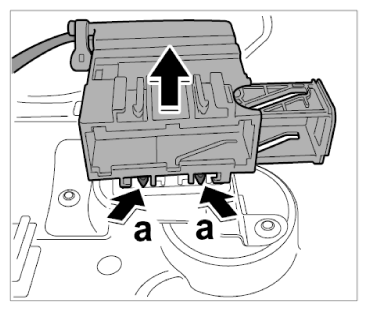

Release connector socket -arrows a- and pull it out of the holder.

Fig 3: Pulling Off Connector Socket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove front belt lock.

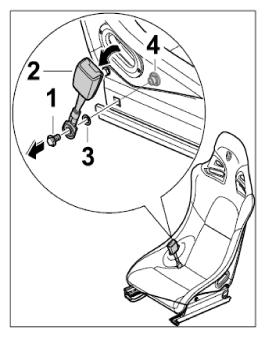

Fig 4: Removing Front Belt Lock
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 3.1. Unscrew fastening screw -1- .
2. 3.2. Pull front belt lock -2- out through the opening on the bucket seat and remove washer -3- and threaded bush -4- .
