Installing Front Belt Lock (Bucket Seat)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

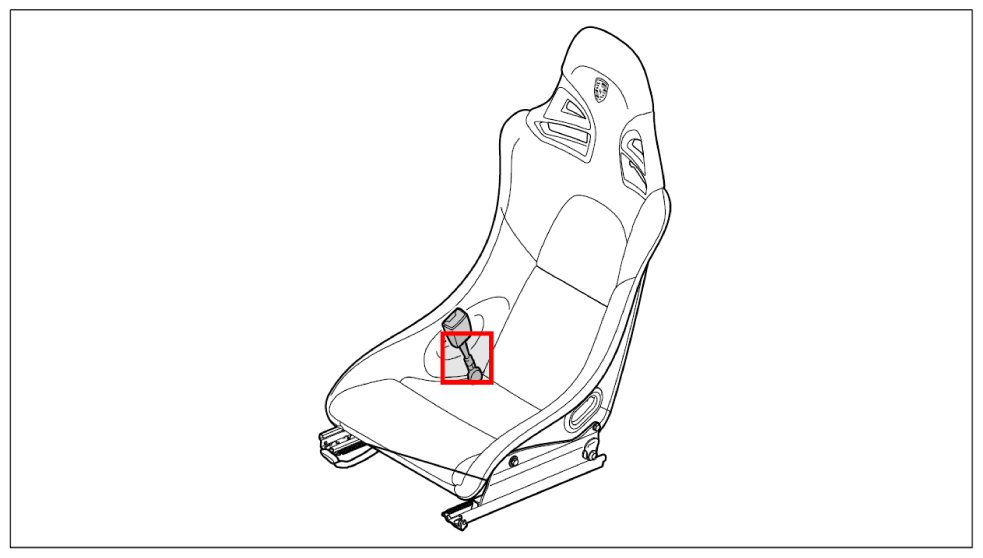

Fig 1: Identifying Front Belt Lock Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

WARNING: Incorrect handling of safety bolts

Danger of injury
Loss of torque

→ Always use new fastening screws and nuts following removal.

→ Observe specified tightening torques.

→ Carry out a visual inspection of all re-used parts.

Information

Always replace the fastening screws on the seat-belt buckle after customer service and reworking. The micro-self-locking screws must not be treated, greased or loosened and then screwed on again.

Install front belt lock.

Fig 2: Installing Front Belt Lock
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

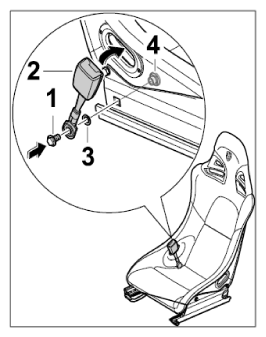

1. 1.1. Insert front belt lock through the opening on the bucket seat.
2. 1.2. Screw in fastening screw -1- , front belt lock -2- and washer -3- together with the threaded bush -4- . → Tightening torque: 50 Nm (37 ftlb.)

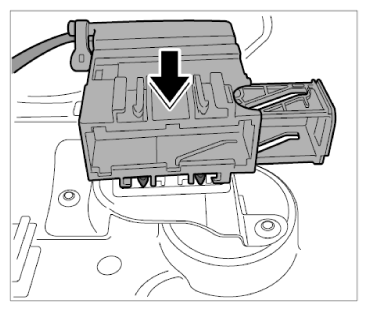

Attach connector socket to support until it clicks into place.

Fig 3: Attaching Connector Socket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

When routing the wire harness for the front seat-belt buckle, ensure that it is routed without tension.

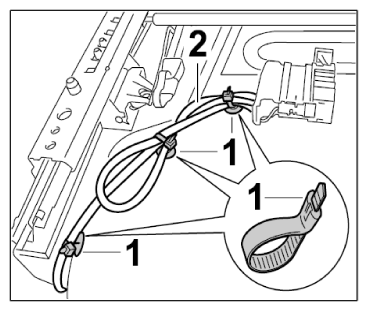

Route wire harness for front belt lock -2- and secure it to the retaining clips with three new tie-wraps -1- .

Fig 4: Securing Wire Harness For Front Belt Lock With Tie-Wraps
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
