Removing Front Belt Lock (Passenger Seat With Seat Occupancy Detection)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disassemble connector socket.

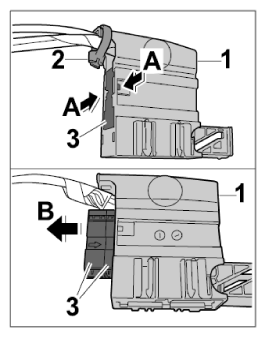

    Fig 1: Removing Connector Socket
    G09827333Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 1.1. Remove tie-wrap -2-  on the connector socket -1-  .
    2. 1.2. Release connector socket -1-  (-arrows A-  ) and remove the single connectors -3-  (-arrow B-  ).
  2. Remove front belt lock.

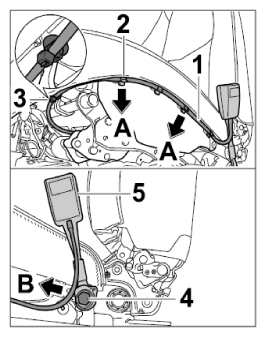

    Fig 2: Removing Front Belt Lock
    G09827334Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 2.1. Pull wire harness -1-  out of the metal clips -2-  (-arrows A-  ).
    2. 2.2. Remove tie-wrap -3-  .
    3. 2.3. Unscrew fastening screw -4-  .
    4. 2.4. Remove front belt lock -5-  (-arrow B-  ).
