Removing Front Belt Lock (Driver's Seat)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

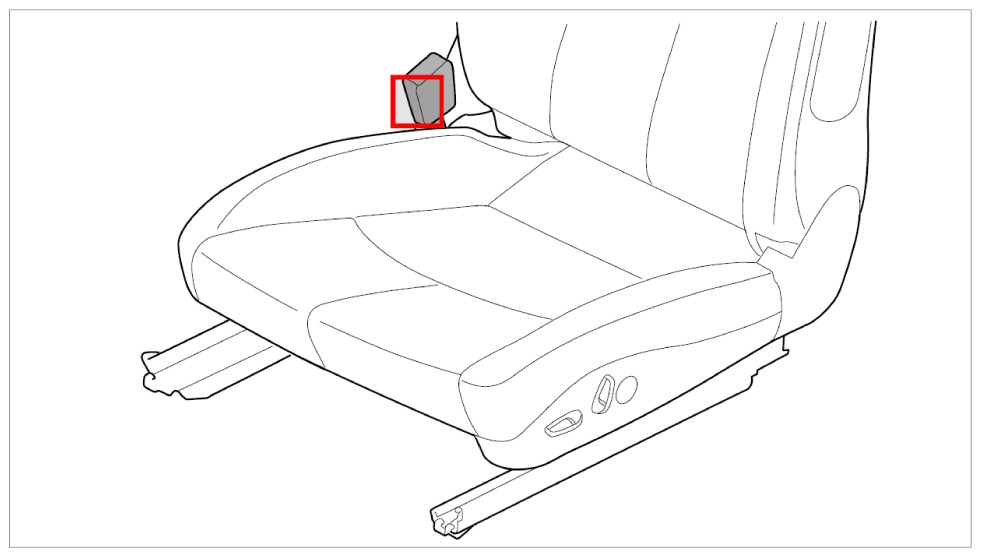

Fig 1: Identifying Front Belt Lock Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Release wire harness.

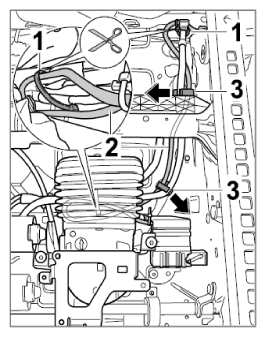

Fig 2: Releasing Wire Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Remove tie-wrap -1- .
2. 1.2. Remove wire harness -2- from the two line brackets -3- (-arrows- ).
Release connector socket -arrows a- and pull it out of the holder -arrow- .

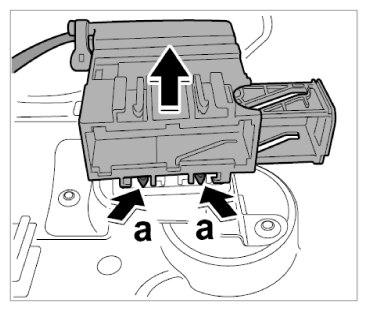

Fig 3: Pulling Off Connector Socket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disassemble connector socket.

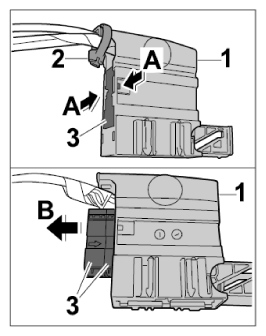

Fig 4: Removing Connector Socket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 3.1. Remove tie-wrap -2- on the connector socket -1- .
2. 3.2. Release connector socket -1- (-arrows A- ) and remove the single connectors -3- (-arrow B- ).
Remove front belt lock.

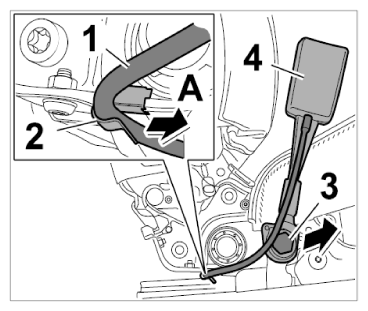

Fig 5: Removing Front Belt Lock
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 4.1. Pull wire harness -1- out of the metal clips -2- (-arrow A- ).
2. 4.2. Unscrew fastening screw -3- .
3. 4.3. Pull out wire harness -1- and remove front belt lock -4- (-arrow- ).
