Installing Front Belt Lock (Driver's Seat)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Install front belt lock.

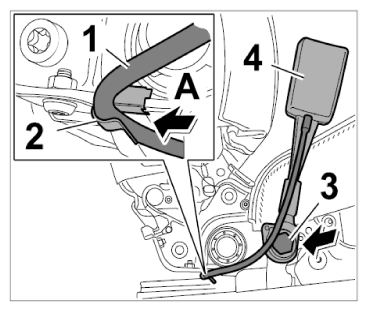

Fig 1: Installing Front Belt Lock
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
WARNING:
Loosen the safety-related threaded joint.
- Danger of injury if belt lock is not screwed on correctly.
→ Always replace fastening screws for belt lock after customer service and reworking.

→ It is not permissible to make alterations to the microencapsulated screws (e.g. use lubricant, loosen bolts, and screw them down again).
1. 1.1. Fit front belt lock -4- (-arrow- ) and secure with the fastening screw -3- . → Tightening torque: 50 Nm (37 ftlb.)
  Information
  - The electric lead must not be routed too tightly around the seat cushion.
2. 1.2. Route wire harness -1- and press it into the metal clips -2- (-arrow A- ).
Assemble connector socket.

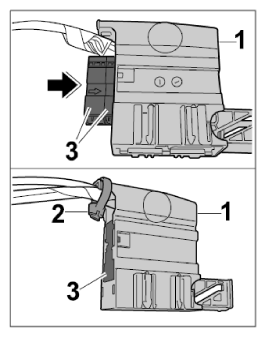

Fig 2: Installing Connector Socket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Push the single connectors -3- into the connector socket -1- (-arrow- ) until they engage securely.
2. 2.2. Fit a new tie-wrap -2- on the connector socket -1- .
Attach connector socket to the holder -arrow- until it engages securely.

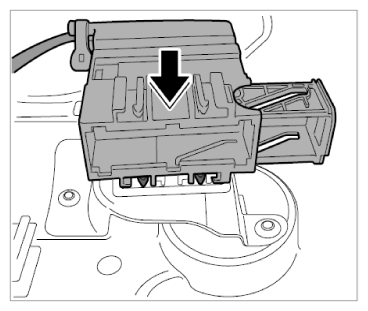

Fig 3: Attaching Connector Socket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure wire harness.

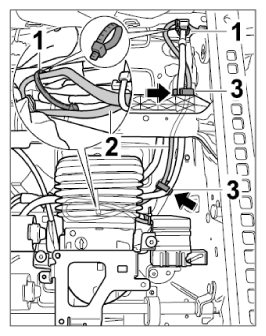

Fig 4: Securing Wire Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 4.1. Insert wire harness -2- into the two line brackets -3- (-arrows- ).
2. 4.2. Affix new tie-wraps -1- .
