Removing Six-Point Seat Belt

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

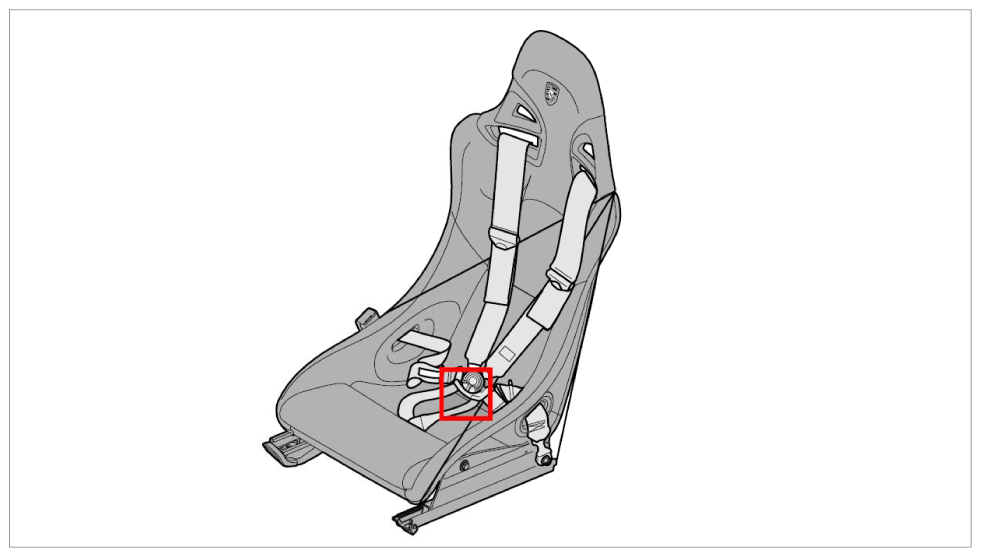

Fig 1: Identifying Six-Point Seat Belt Installation Position
G09827309Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Loop technique for releasing the six-point seat belt on the roll cage cross member.

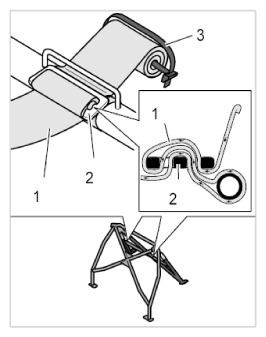

    Fig 2: Releasing Belt Strap On Roll Cage Cross Member
    G09827310Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 1.1. Remove tie-wrap -3-  on rolled-up belt strap -1-  .
    2. 1.2. Pull belt strap -1-  in direction of arrow -inset-  out of the adjustable slider -2-  .
  2. Loosen seat belt mounts at the body.
    1. 2.1. Loosen fastening point 1.

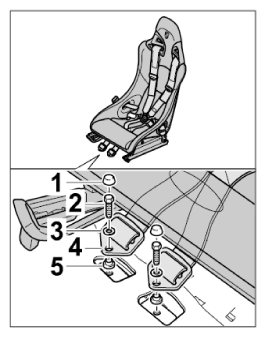

      Fig 3: Loosening Fastening Point 1
      G09827311Courtesy of PORSCHE CARS NORTH AMERICA, INC.
      1. 2.1.1. Move bucket seat as far back as it will go.
      2. 2.1.2. Lever off caps -1-  with a screwdriver.
      3. 2.1.3. Unscrew fastening screws -2-  . Remove washer -3-  , seat belt mount -4-  and spacer sleeve -5-  .
    2. 2.2. Loosen fastening point 2.

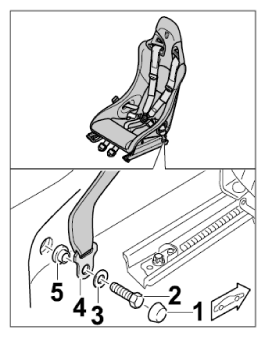

      Fig 4: Loosening Fastening Point 2
      G09827312Courtesy of PORSCHE CARS NORTH AMERICA, INC.
      1. 2.2.1. Move bucket seat as far forward as it will go.
      2. 2.2.2. Lever off cap -1-  with a screwdriver.
      3. 2.2.3. Unscrew fastening screw -2-  . Remove washer -3-  , seat belt mount -4-  and spacer sleeve -5-  .
    3. 2.3. Loosen fastening point 3.

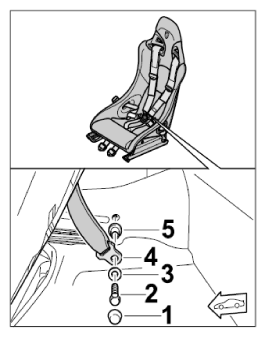

      Fig 5: Loosening Fastening Point 3
      G09827313Courtesy of PORSCHE CARS NORTH AMERICA, INC.
      1. 2.3.1. Lever off cap -1-  with a screwdriver.
      2. 2.3.2. Unscrew fastening screw -2-  . Remove washer -3-  , seat belt mount -4-  and spacer sleeve -5-  .
  3. Pull the six-point seat belt out through the openings in the bucket seat.

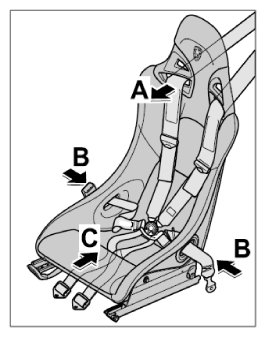

    Fig 6: Pulling Out Six-Point Seat Belt
    G09827314Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 3.1. Pull six-point seat belt out through the top openings in the backrest -arrow A-  .
    2. 3.2. Pull six-point seat belt out through the openings on the sides of the seat frame -arrows B-  .
    3. 3.3. Pull six-point seat belt out through the bottom opening on the seat frame -arrow C-  .
