Installing Six-Point Seat Belt

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

The six-point seat belt can only be used for safety on the race track.

Pull six-point seat belt through the openings in the bucket seat.

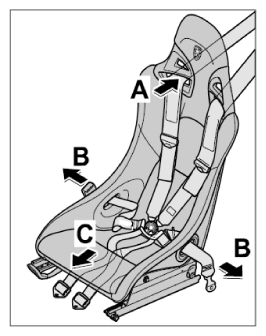

Fig 1: Pulling Six-Point Seat Belt
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Pull six-point seat belt through the top openings in the backrest -arrow A- .
2. 1.2. Pull six-point seat belt through the openings on the sides of the seat frame -arrows B- .
3. 1.3. Pull six-point seat belt through the bottom opening on the seat frame -arrow C- .
Secure seat belt mounts to the body.
1. 2.1. Secure fastening point 1.

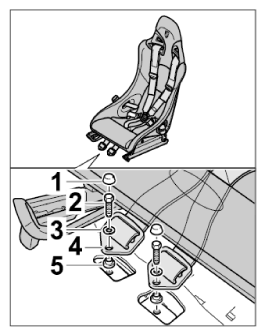

  Fig 2: Securing Fastening Point 1
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. 2.1.1. Move bucket seat as far back as it will go.
  2. 2.1.2. Position spacer sleeve -5- , seat belt mount -4- and washer -3- on the body and secure with the fastening screws -2- . → Tightening torque: 50 Nm (37 ftlb.)
  3. 2.1.3. Press caps -1- onto the fastening screws -2- .
2. 2.2. Secure fastening point 2.

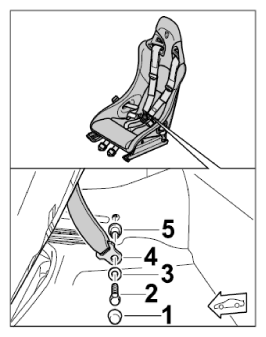

  Fig 3: Securing Fastening Point 2
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. 2.2.1. Move bucket seat as far forward as it will go.
  2. 2.2.2. Position spacer sleeve -5- , seat belt mount -4- and washer -3- on the body and secure with the fastening screw -2- . → Tightening torque: 50 Nm (37 ftlb.)
  3. 2.2.3. Press cap -1- onto the fastening screw -2- .
3. 2.3. Secure fastening point 3.

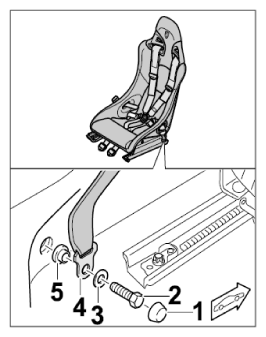

  Fig 4: Securing Fastening Point 3
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. 2.3.1. Position spacer sleeve -5- , seat belt mount -4- and washer -3- on the body and secure with the fastening screw -2- . → Tightening torque: 50 Nm (37 ftlb.)
  2. 2.3.2. Press cap -1- onto the fastening screw -2- .
Loop technique for fastening the six-point seat belt to the roll cage cross member.

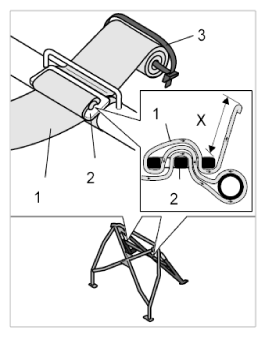

Fig 5: Securing Belt Strap To Roll Cage Cross Member
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 3.1. Feed the belt strap -1- in direction of arrow -inset- around the roll cage cross member into the adjustable slider -2- . The overhang -X- of the belt strap must be at least 100 mm.
2. 3.2. Roll up the projecting belt strap -1- and hold it together with a tie-wrap -3- .
