Triggering Of Airbag Units

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Detonation of airbag units.
  • Danger of injury from emerging objects, e.g. splinters.
  • Hearing impairment by explosion noises.
  • Danger of burns from hot airbag units.
  • Danger of poisoning by emerging gases.

→ Observe a safety distance of at least 10 m.

→ Wear hearing protection.

→ Each airbag unit, the respective ignition stages 1 and 2, and each belt tensioner must be triggered individually.

→ Allow airbag units to cool down for the appropriate time.

→ Open the vehicle doors to allow the gases to escape.

Connect the ignition device to a separate battery and press the button.

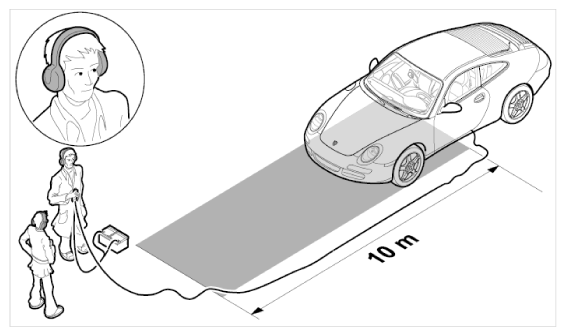

Fig 1: Triggering Airbag Units
G09827283Courtesy of PORSCHE CARS NORTH AMERICA, INC.
