Side Airbag

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Before disconnecting the battery, move the seat to the uppermost position.

  1. Unlock and separate the electrical plug for the seat.

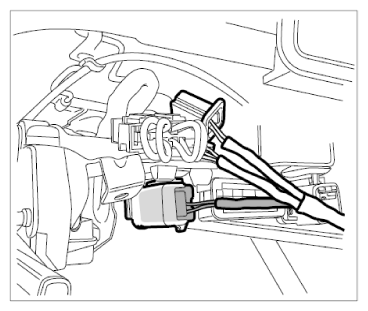

    Fig 1: Identifying Side Airbag Electrical Plug For Seat
    G09827281Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Connect plug of adapter cable 9257/6 to the electrical plug for the seat.
  3. Connect ignition device No. 9257 to the 2-pin plug of adapter cable No. 9257/6.
  4. Place the ignition device in front of the vehicle through the door gap and trigger it.
