Passenger's Side
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
Information
Deformation of the instrument panel bracket must be expected after triggering of the passenger's airbag unit. An installed airbag unit should be intentionally triggered in installed state only if the vehicle is to be scrapped. If the instrument panel bracket is deformed in the area of the airbag mount, the instrument panel bracket will have to be replaced.
This is a two-stage airbag module which must be ignited separately.
- Remove glove compartment → 681519 REMOVING AND INSTALLING GLOVE COMPARTMENT
- Remove passenger's airbag unit. → Removing and installing passenger's airbag unit - Removing
- If the instrument panel is to be re-used, remove the instrument panel. → 701819 REMOVING AND INSTALLING INSTRUMENT PANEL

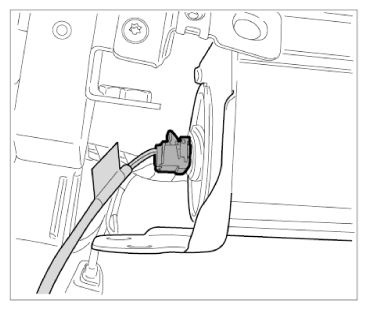

- Connect the adapter cables 9257/3 (left) and 9257/5 (right) to the removed airbag unit. Re-install airbag unit with the adapter cables.
- Connect ignition device No. 9257 to the 2-pin plug E of adapter cable No. 9257/3.
- Place the ignition device in front of the vehicle through the door gap.
- After triggering, repeat the work step with adapter cable No. 9257/5.
