Driver's Side

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

This is a two-stage airbag module which must be ignited separately.

Remove trim panel for steering column. → 481319 REMOVING AND INSTALLING TRIM PANEL (STEERING-COLUMN SWITCH)

Disconnect plug from the airbag at the steering column switch and first insert the plug with marking A (1st stage) of adapter cable No. 9257/4.

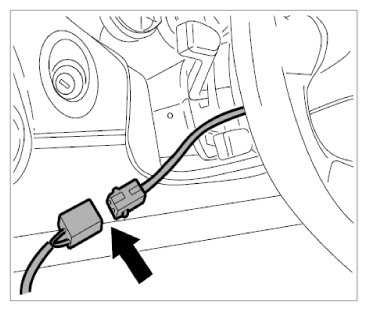

Fig 1: Locating Plug From Airbag At Steering Column Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect ignition device No. 9257 to the 2-pin plug E of adapter cable No. 9257/4.
Place the ignition device in front of the vehicle through the door gap.
After triggering, repeat the work step with the plug with the marking B (2nd stage).
