Belt Tensioner

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Remove the side panel lining at rear. → 707519 REMOVING AND INSTALLING REAR SIDE TRIM PANEL

  1. Connect plug of adapter cable 9257/3 to the belt tensioner.

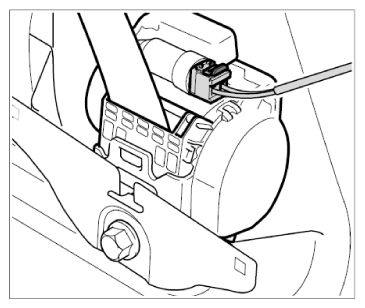

    Fig 1: Connecting Plug Of Adapter Cable (9257/3) To Belt Tensioner
    G09827282Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Connect ignition device No. 9257 to the 2-pin plug of adapter cable No. 9257/3.
  3. Place the ignition device in front of the vehicle through the door gap and trigger it.
