Removing Fresh/Recirc. Air Servo Motor

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

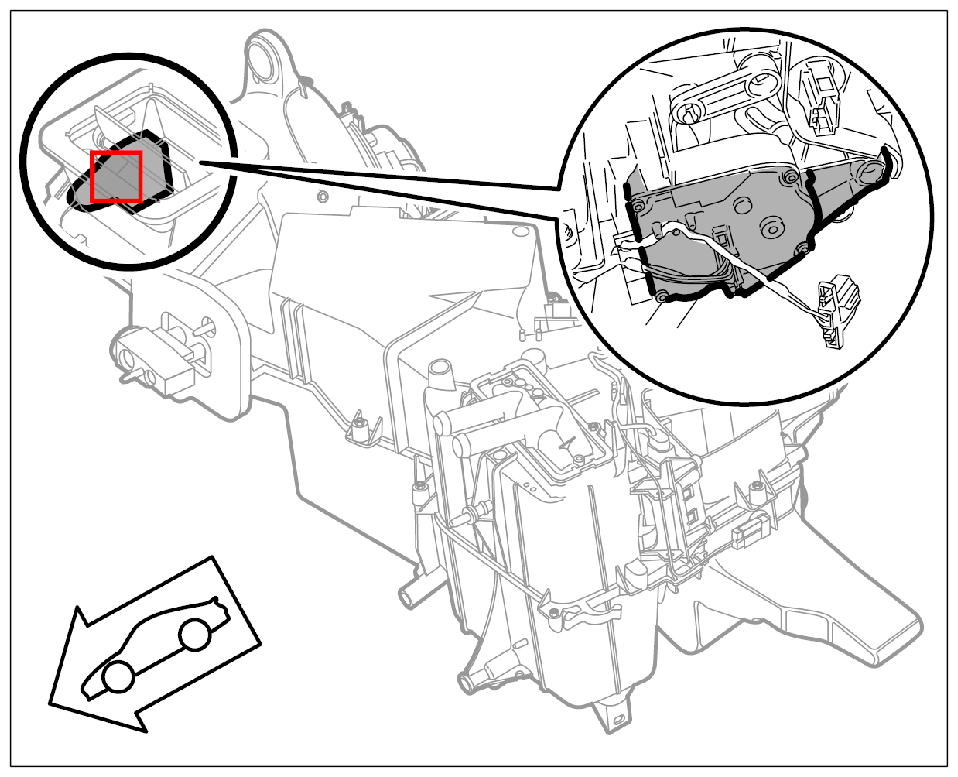

Fig 1: Identifying Installation Position Of Air Servo Motor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Switch off ignition and remove ignition key.
Unscrew fastening screw -1- from below -arrow- .

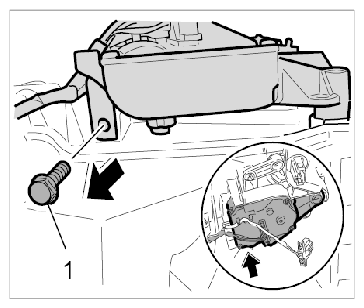

Fig 2: Removing Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release and unplug electric connector -a- .

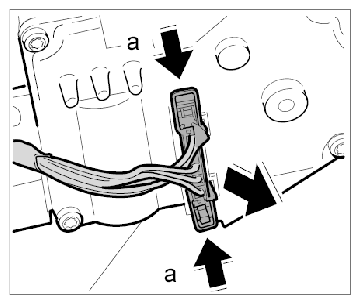

Fig 3: Unlocking Electric Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press the locking mechanism of the servo motor actuating lever and press it out from the deflector of the recirculation flap.

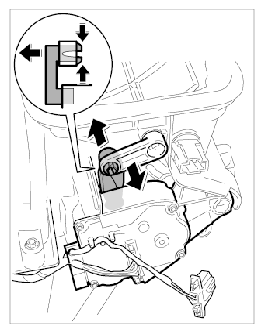

Fig 4: Disengaging Actuating Lever
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Swing down the servo motor and remove from the heater/air-conditioning unit.

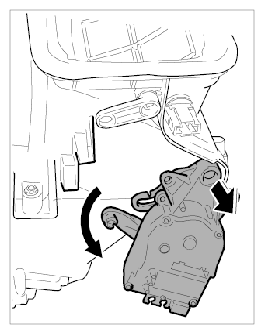

Fig 5: Removing Servo Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
