Installing Fresh/Recirc. Air Servo Motor

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Slide servo motor into heater/air-conditioning unit as far as it will go and then swing it upwards.

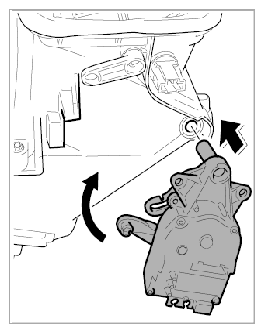

Fig 1: Inserting Servo Motor Into Heater/Air-Conditioning Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clip the servo motor actuating lever onto the deflection lever of the heater/air-conditioning unit.

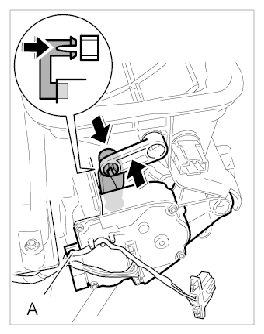

Fig 2: Engaging Actuating Lever
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Lay electric line to the servo motor -A- and connect the electric connector to servo motor until it is felt to engage.

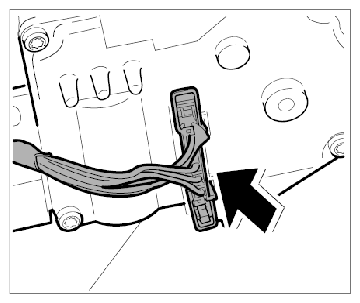

Fig 3: Connecting Electric Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure servo motor with the fastening screw -1- . → Tightening torque: 1.2 Nm (1.0 ftlb.)+/-0.5 Nm (+/-0.5 ftlb.)

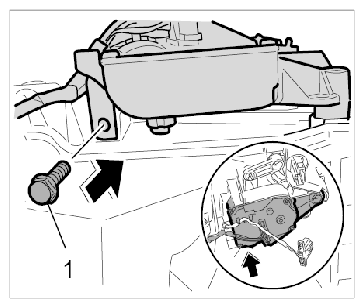

Fig 4: Securing Servo Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Switch on ignition and check function of servo motor by adjusting the air conditioning control.
