Removing Ventilation Cover

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

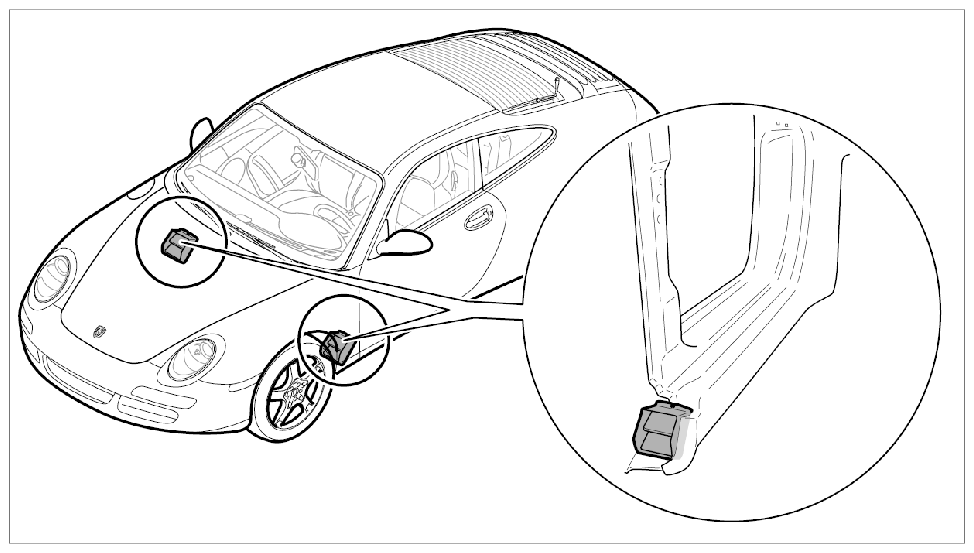

Fig 1: Identifying Installation Position Of Ventilation Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Grasp the ventilation cover on the upper frame -arrow- and pull it out abruptly to the front.

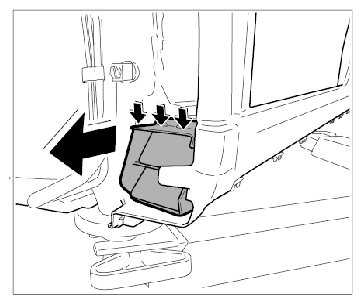

Fig 2: Pulling Out Ventilation Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
