Installing Ventilation Cover

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert the ventilation cover from below -arrow-  and clip it in an upward direction.

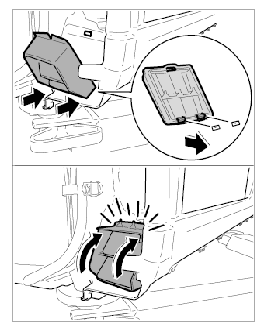

    Fig 1: Clipping In Ventilation Cover
    G09830215Courtesy of PORSCHE CARS NORTH AMERICA, INC.
