Removing Middle Air Vent

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

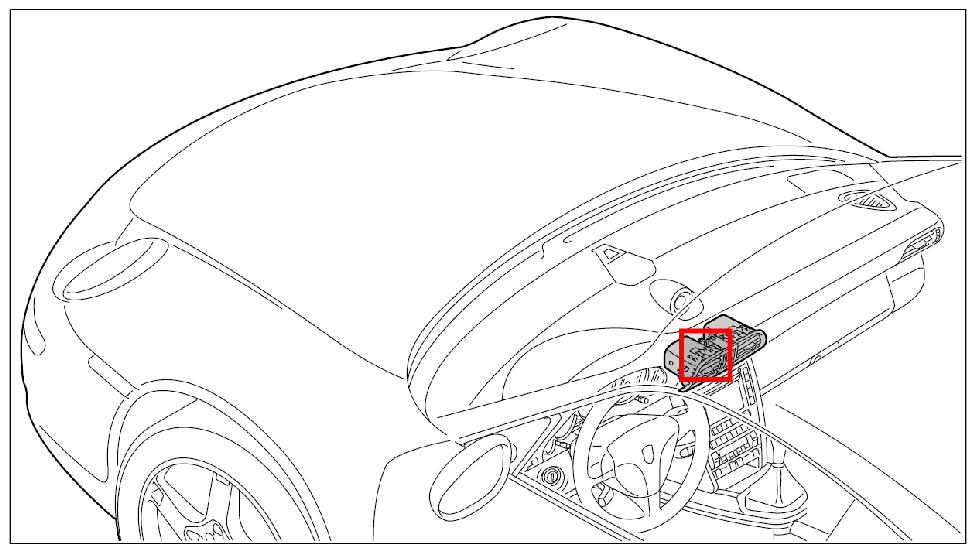

Fig 1: Identifying Installation Position Of Middle Air Vent

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

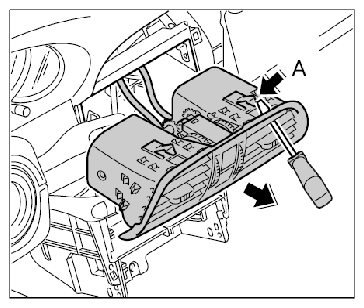

With a screwdriver through the top air slot, release the left and right retaining clip -A- and pull the air vent out of the dashboard.

Fig 2: Releasing Air Vent
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

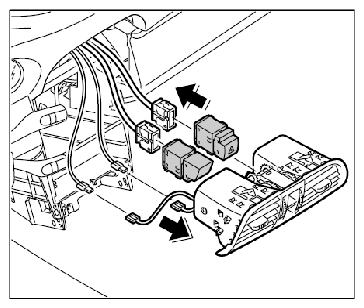

Pull apart the electrical plug connections and remove the air vent.

Fig 3: Removing Air Vent
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
