Removing left air guide

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disengage air guide -A-  for air vent at left door window by pulling it upward at the mounting bracket, then pull to the left out of the air guide slot -B-  to remove it in a downward direction.

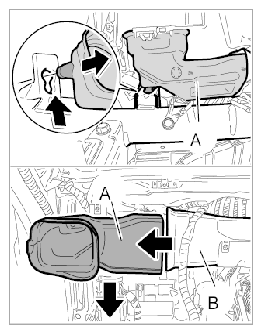

    Fig 1: Disengaging Air Guide
    G09830196Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    If the air guide -B-  is to be removed, first remove the dashboard. → Removing instrument panel

  2. Pull the air guide -B-  up out of the heater/air-conditioning unit.

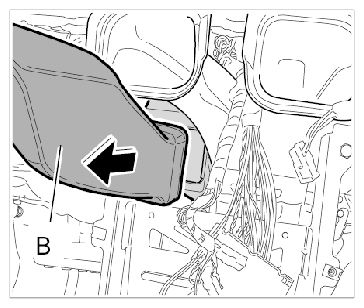

    Fig 2: Removing Air Guide
    G09830197Courtesy of PORSCHE CARS NORTH AMERICA, INC.
